Overview

Details

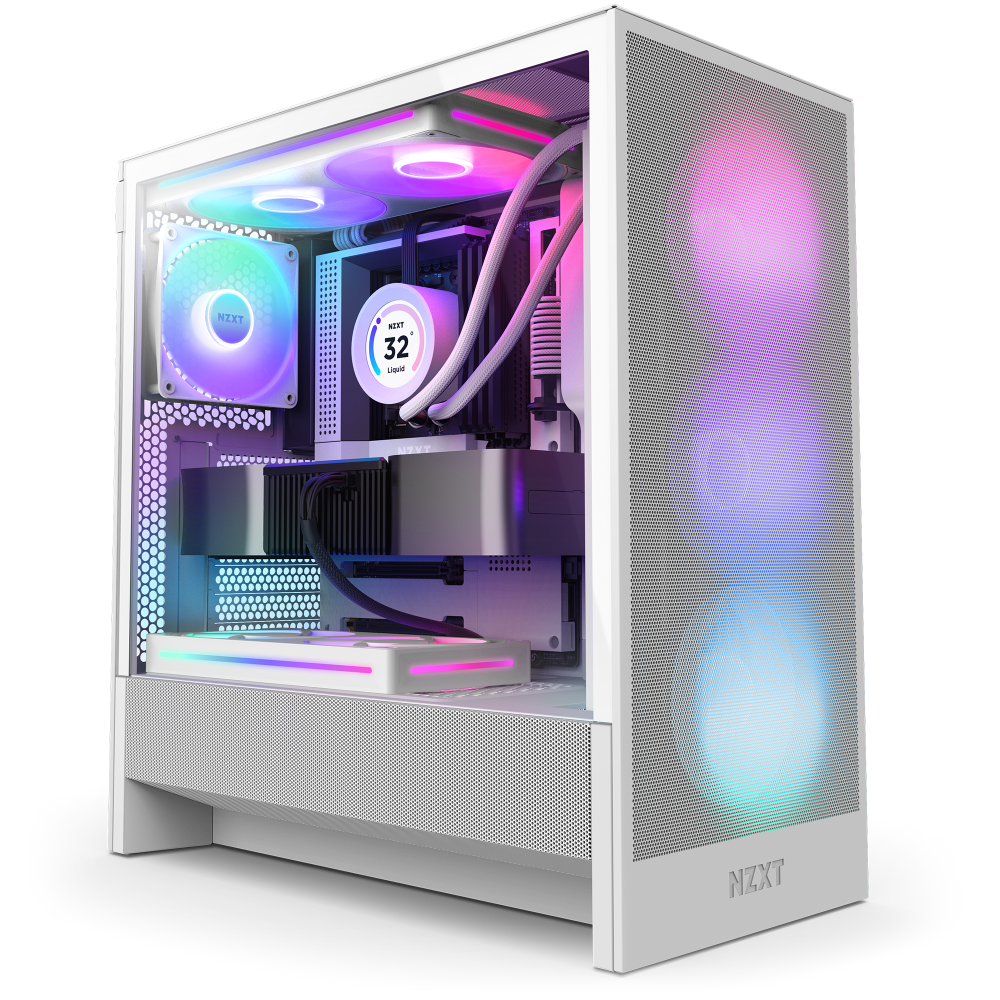

The H5 Flow RGB features two pre-installed F140 RGB Core fans & two F120Q Quiet Airflow fans so this compact mid-tower stays cooler than cool. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds.

  • Dedicated fan on bottom inside panel is angled to cool GPU
  • Perforated front panel provides optimal ventilation
  • Intuitive cable management system with wide channels, hooks, & straps
  • Tool less access to front and side panels
  • Front panel supports up to 2 x 140mm fans or 280mm radiator
  • Top panel supports up to 2 x 120mm fans or 240mm radiator
  • Includes two pre-installed F140 RGB Core fans (Case Version) & two F120Q Quiet Airflow fans (Case Version)
  • Connects multiple F140 RGB Core fans to 5V ARGB header on the motherboard
  • Two color options (Matte Black, Matte White)

Inside the Box

  • H5 Flow Case with fans (see specs)1

  • F140 RGB Core Fan (case version, pre-installed)2

  • F120Q Airflow Fan (case version, pre-installed)2

  • Front I/O split cables1

  • Brown box, PE bag, polyform, manual, accessory box & parts (including the screws)1

High-Performance Airflow

Perforated front and top panels direct filtered air through the case to cool down components and enhance overall performance.

Built-In RGB Lighting

Includes two pre-installed F140 RGB Core fans that connect to a standard 5V ARGB header.

Dedicated GPU Fan

An angled 120mm fan draws air from below the case to provide direct cooling to your power-hungry graphics card.

Spacious Cooling Support

The top panel offers space for a 240mm radiator and the front panel provides room for a 280mm radiator.

Ready for Performance

Fits NVIDIA GeForce RTX 40 Series graphics cards with its 400mm clearance. Display your GPU vertically using the NZXT Vertical GPU Mounting Kit.*

*Sold separately. Reduces clearance to 384mm.

Easily Route Cables

Wide cable channels with hooks, bridge and straps take the guesswork out of organized cable management.

More Videos

Tech Specs

Key Specs

  • Motherboard Support:Mini-ITX, Micro-ATX, ATX

  • Enclosure Type:Mid-Tower

  • Case Material (White):SGCC Steel, Ultra-clear Tempered Glass

  • Case Material (Black):SGCC Steel, Dark Tinted Tempered Glass

Dimensions

  • Height (With Feet):464mm

  • Height (Without Feet):448mm

  • Width:227mm

  • Depth:446mm

  • Weight:7.36 kg

Compatibility & Clearance

  • Max CPU Cooler Clearance:Up to 165mm

  • Max GPU Clearance:Up to 365mm

  • Front Radiator Clearance:45mm

  • Cable Management:Up to 23mm

  • PSU Clearance:Up to 185mm

Front I/O Ports

  • USB 3.2 Gen 1 Type-A:1

  • USB 3.2 Gen 2 Type-C:1

  • Headset Audio Jack:1

Expansion Slots

  • Standard:7

  • Vertical :0

Drive Bays

  • 2.5":1+1

  • 3.5":1

Fan Support

  • Front:2 x 120mm / 2 x 140mm (2 x F Series RGB Core 140mm (Case Version) included)

  • Top:2 x 120mm

  • Rear:1 x F Series Quiet 120mm (Case Version) included

  • Bottom:1 x F Series Quiet 120mm (Case Version) included

  • Filters:All Air Intakes

Radiator Support

  • Front:Up to 280mm

  • Top:Up to 240mm

  • Rear:Up to 120mm

Fan Specs

  • Model:F140 RGB Core Fan (Case Version)

  • Speed:1200 ± 120 RPM

  • Airflow:61.74 CFM

  • Static Pressure:2.06mm-H2O

  • Noise:29.05 dBA

  • Fan Connector:3-pin

Fan Specs

  • Model:F120Q Airflow Fan (Case Version)

  • Speed:1200 ± 120 RPM

  • Airflow:62.18 CFM

  • Static Pressure:1.05 mm-H2O

  • Noise:25.1 dBA

  • Fan Connector:3-pin

General

  • Warranty:2 Years

  • Model Number:CC-H51FW-R1 (White) / CC-H51FB-R1 (Black)

  • UPC:810074843645 (White) / 810074843638 (Black)

  • EAN:5056547203560 (White) / 5056547203553 (Black)
