H5 Flow RGB
Rated 4.5 out of 5 stars
4.5 Stars (272 Reviews)
Compact ATX Mid-Tower Airflow Case with RGB Fans
Elige opciones
Overview
The H5 Flow RGB boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.
- The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
- Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
- Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
- Equipped with a front-mounted F360 RGB Core (CV) single-frame fan and rear-mounted F120Q (CV) fan for strong out-of-the-box cooling and lighting.
- Effortlessly route and conceal cables using the wide channels, hooks, and straps.
H5 Flow RGB

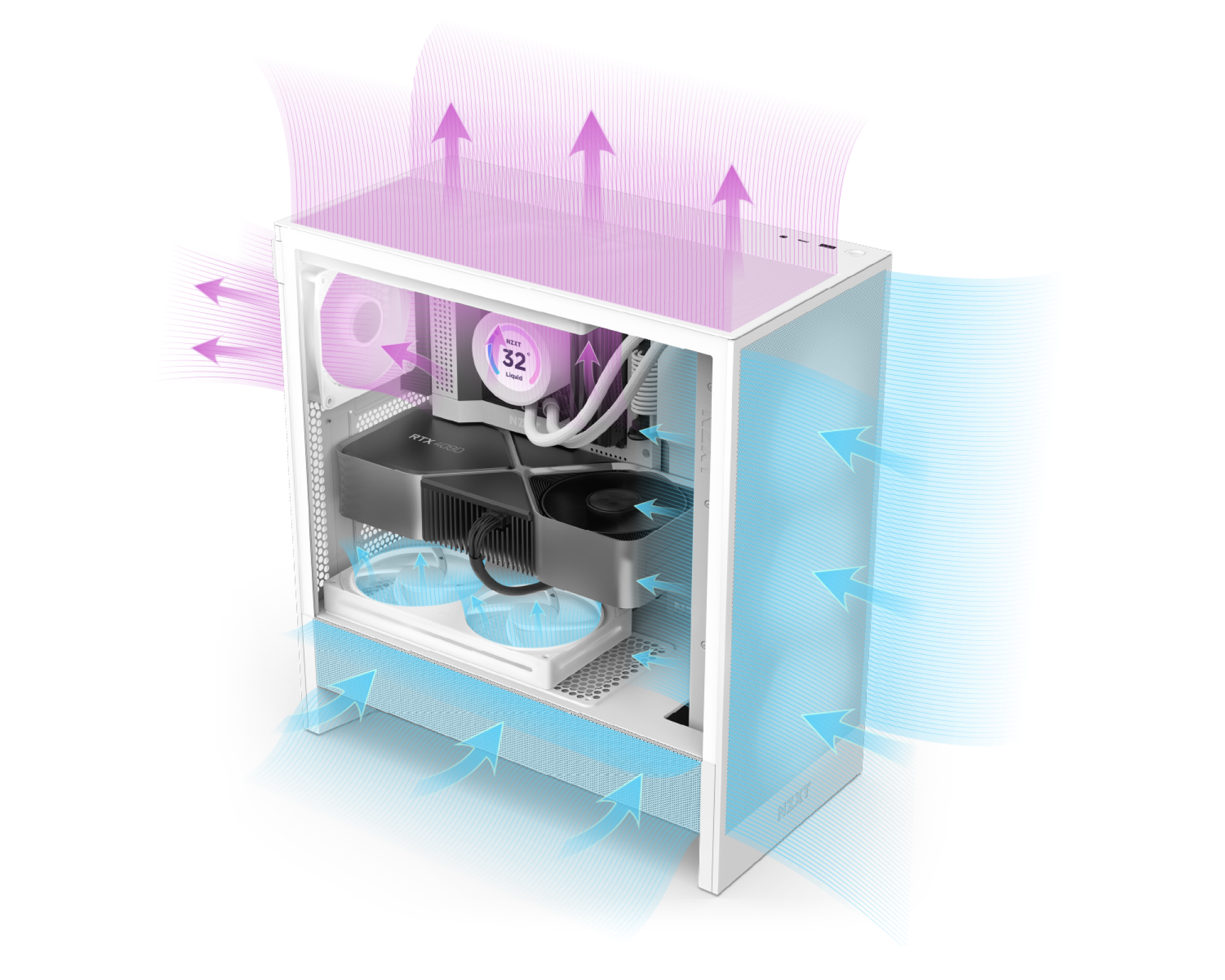

More Air to the GPU

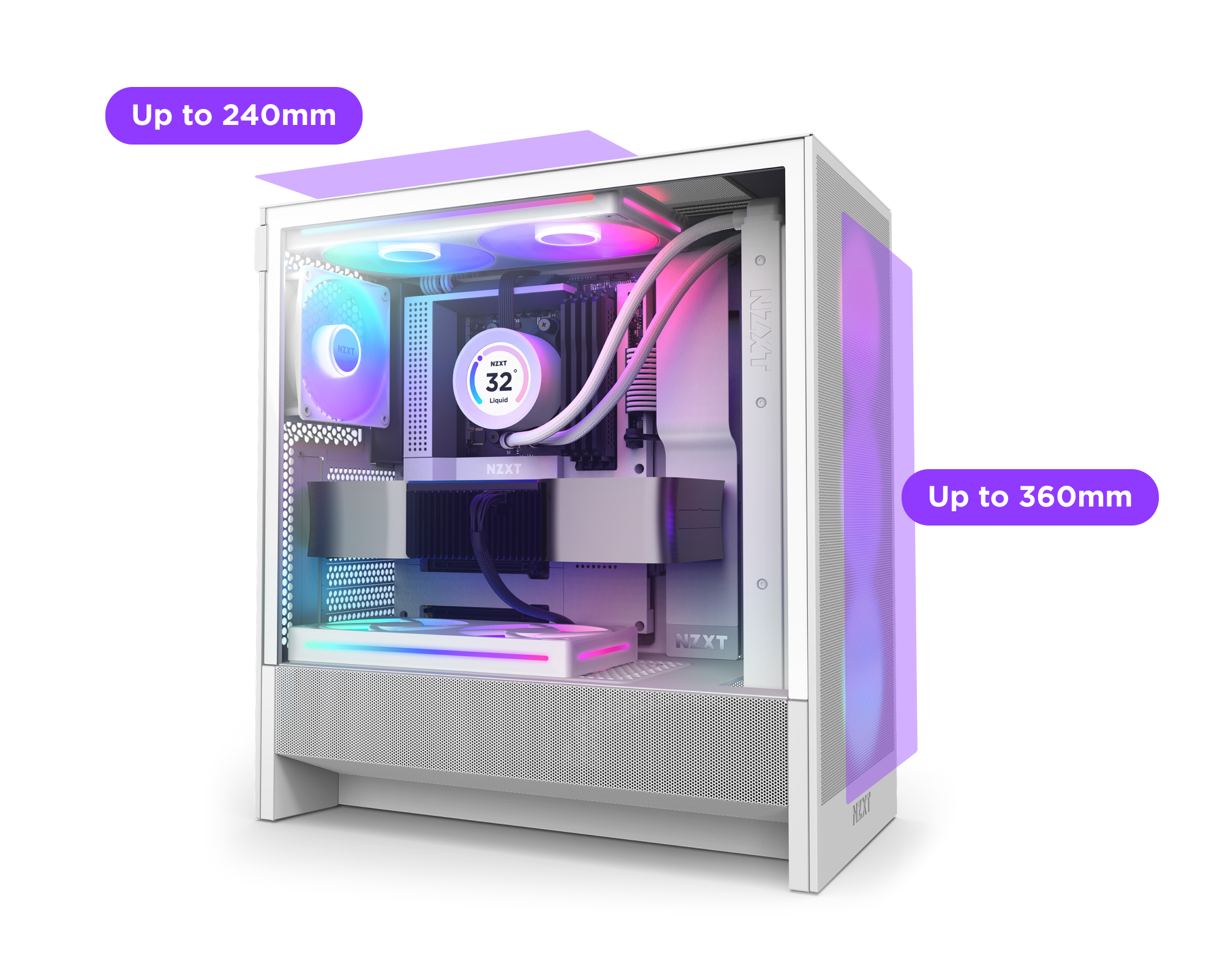

Fits Large Radiators
Optimized for Airflow
Pre-Installed Fans*
Easy Cable Management
Tool-less Access
Strong and Sleek
Especificaciones técnicas
Key Specs
Motherboard Support
E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
Enclosure Type
Mid-Tower
Case Material
SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)
Dimensions
Height (with feet)
465 mm / 18.31 in
Width
225 mm / 8.86 in
Depth
430 mm / 16.93 in
Weight
7.63 kg / 16.82 lb
Compatibility & Clearance
CPU Cooler Height
Up to 170 mm
GPU Length
Up to 410 mm
PSU Length
Up to 200 mm
Cable Management
Up to 28.7 mm
Top Radiator
Up to 240 mm (280 mm with low-profile memory)
Top Mounted Radiator + Fan Thickness
Up to 55 mm
Front Ports
USB 3.2 Type-A
1
USB 3.2 Gen 2x2 Type-C (20 Gbps)
1
Headset Audio Jack
1
Expansion Slots
Standard
7
Vertical
0
Drive Bays
2.5"
2
3.5"
1
Fan Support
Front
3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included)
Top
2 x 120 mm / 2 x 140 mm
Bottom
2 x 120 mm
Rear
1 x 120 mm (1 x F120Q Case Version included)
Radiator Support
Front
Up to 360 mm
Top
Up to 240 mm (280 mm with low-profile memory only)
Fan Specs - F360 RGB Core (Case Version)
Model
F360 RGB Core (Case Version)
Speed
1,700 ± 200 RPM
Airflow
50.1 CFM
Static
1.27 mm-H₂O
Noise
23.3 dBA
Fan Connector
3-pin DC
Fan Specs - F120Q (Case Version)
Model
F120Q (Case Version)
Speed
1,350 ± 150 RPM
Airflow
60.2 CFM
Static
1.05 mm-H₂O
Noise
24.1 dBA
Fan Connector
3-pin DC
General
Warranty
2 years
White Variant
Model Number
CC-H52FW-R1
UPC
810074845922
EAN
5056547205861
Black Variant
Model Number
CC-H52FB-R1
UPC
810074845939
EAN
5056547205878
