Platinum Series

C1500 Platinum ATX 3.1

$15 Off

C1500 Platinum ATX 3.1

1500 Watt 80 PLUS Platinum Fully Modular ATX 3.1 PSU

$369.99$354.99

Configure

Color:

Matte Black

Compatible Products

$100 Off

H7 Elite

Color:

Matte White

$79.99+ $179.99

$100 Off

N7 Z790

Color:

White

$199.99+ $299.99

Sold Out

Kraken Elite 360 (2023)

Color:

Matte Black

+ $279.99

Buy
Estimated Ship Date: 12/05/24
Ready to ship

Return Policy: NZXT Return Policy

Warranty Policy: NZXT Warranty

Have questions?

Our experts are ready to help.

Chat Now
customer support

Overview

Details

The NZXT C1500 Platinum PSU offers highly efficient, digitally-controlled power, ATX 3.1 compliance, and PCIe 5.1 connectivity with a high-performance magnetic levitation fan.

  • Designed with ATX 3.1 and PCIe 5.1 compliance to power current and future generations of high-performance GPUs and CPUs.
  • Includes two 16-pin 12V-2x6 PCIe 5.1 cables, each capable of delivering over 600 watts to power-hungry GPUs.
  • Digital power enables precise voltage regulation, resulting in higher efficiency and lower ripple noise.
  • Exceeding 80 Plus Platinum standards, the 94% efficiency reduces power consumption for lower monthly bills and cooler, quieter operation.
  • Certified for ultra-high efficiency and ultra-low noise with Cybenetics Titanium efficiency and Cybenetics A- noise level ratings.
  • 140mm magnetic levitation fan uses air-suspended blades for low noise, high airflow, and a long lifespan.
  • Constructed using high-quality 105°C Japanese capacitors for excellent reliability and long-lasting performance.
  • Fully modular design simplifies cable management, allowing for the connection of only necessary cables.
  • Compact 180mm form factor optimizes valuable case space while promoting improved airflow.

Inside the Box

  • C1500 Platinum1

  • 24-pin ATX Power Cable1

  • 4+4-pin CPU Power Cable1

  • 8-pin CPU Power Cable1

  • 6+2-pin PCIe Power Cable6

  • 16-pin (12+4) 12V-2x6 PCIe Cable2

  • SATA Cable3

  • Peripherals Cable1

  • 6-32 Screws4

  • AC Power Cord1

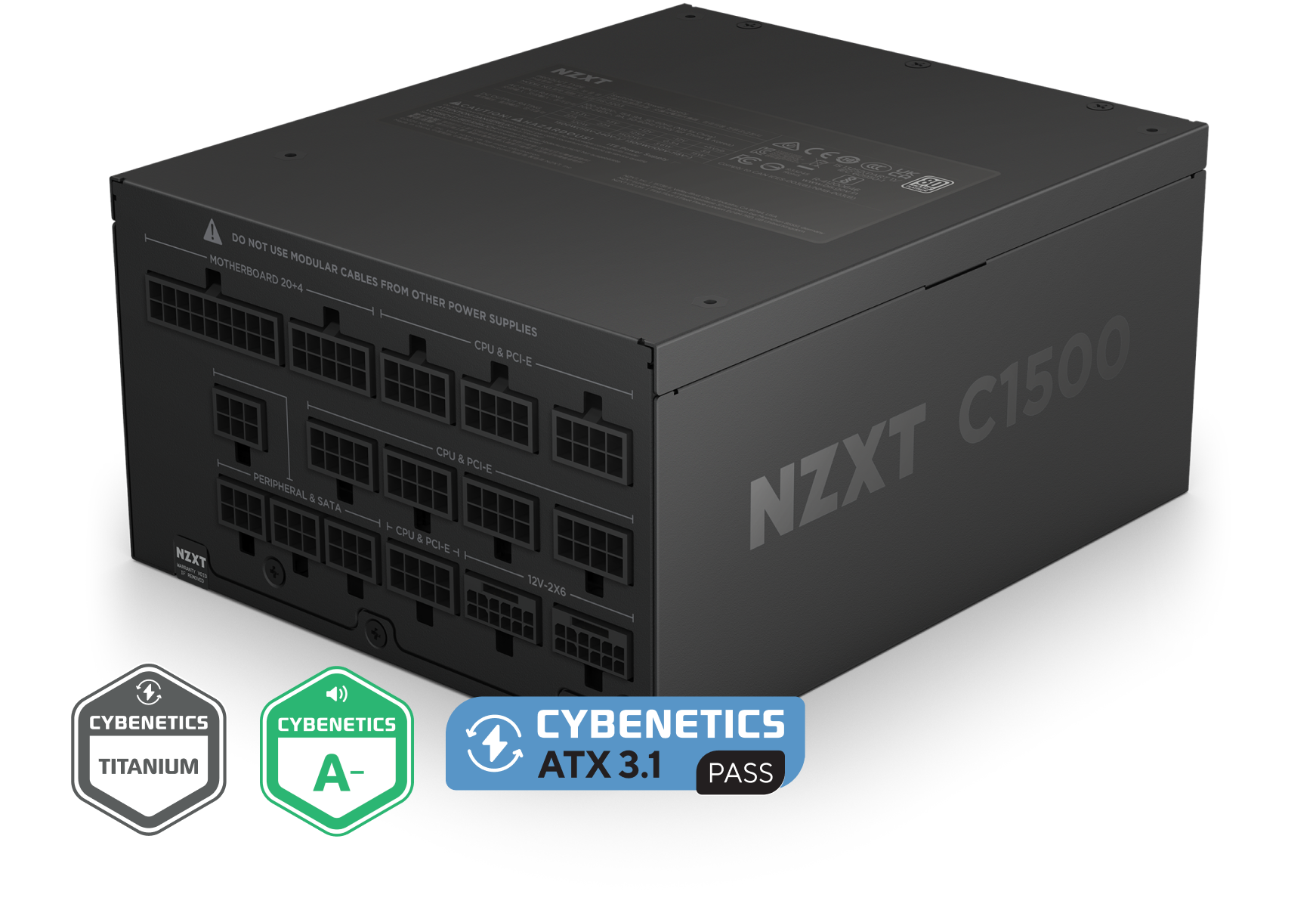

Future-Proof Power

ATX 3.1 and PCIe 5.1 compliance supports current and future high-performance GPUs and CPUs.

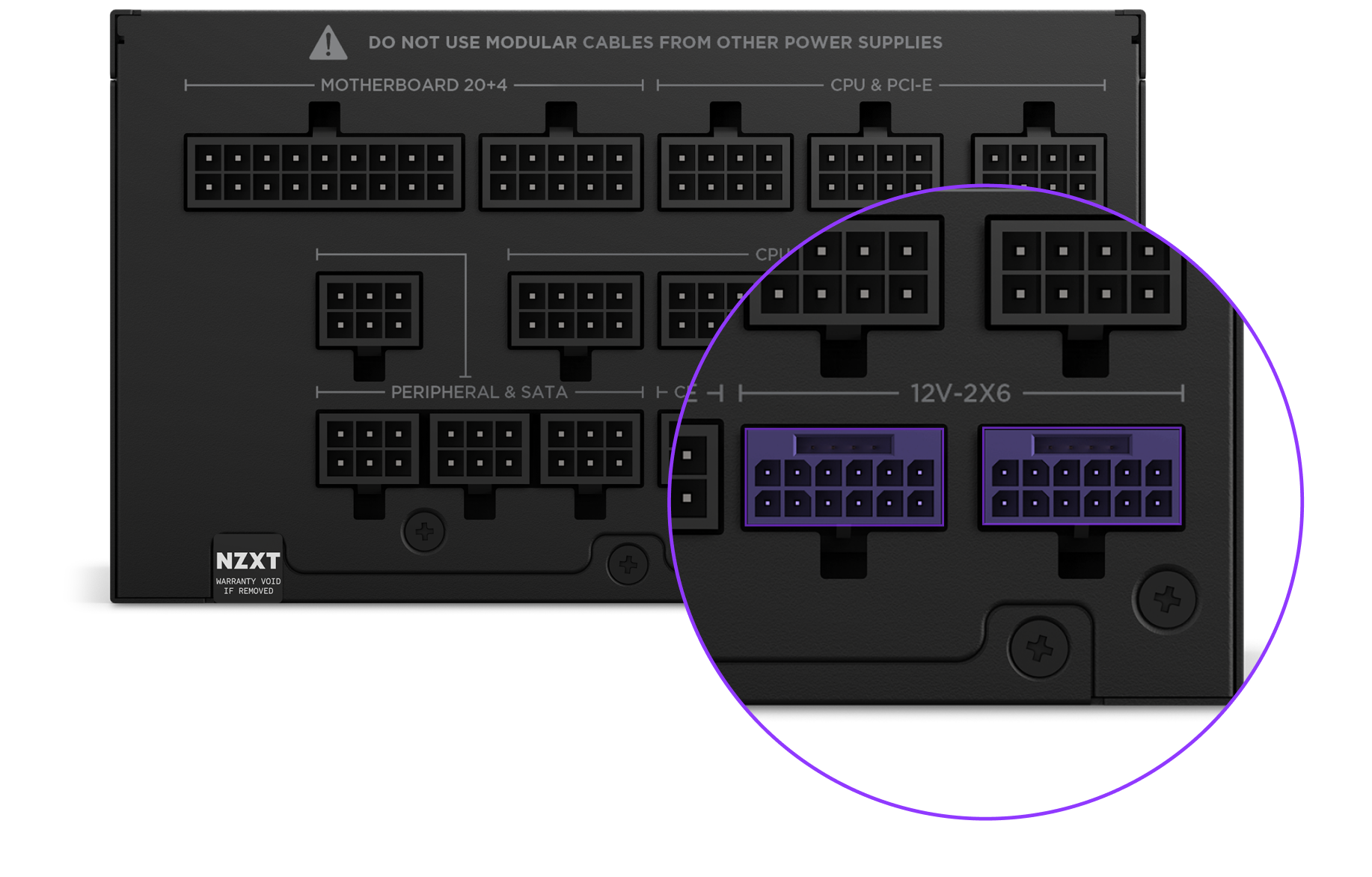

Dual PCIe 5.1 Connectors

Equipped with two 16-pin 12V-2x6 cables to power GPUs drawing more than 600 watts.

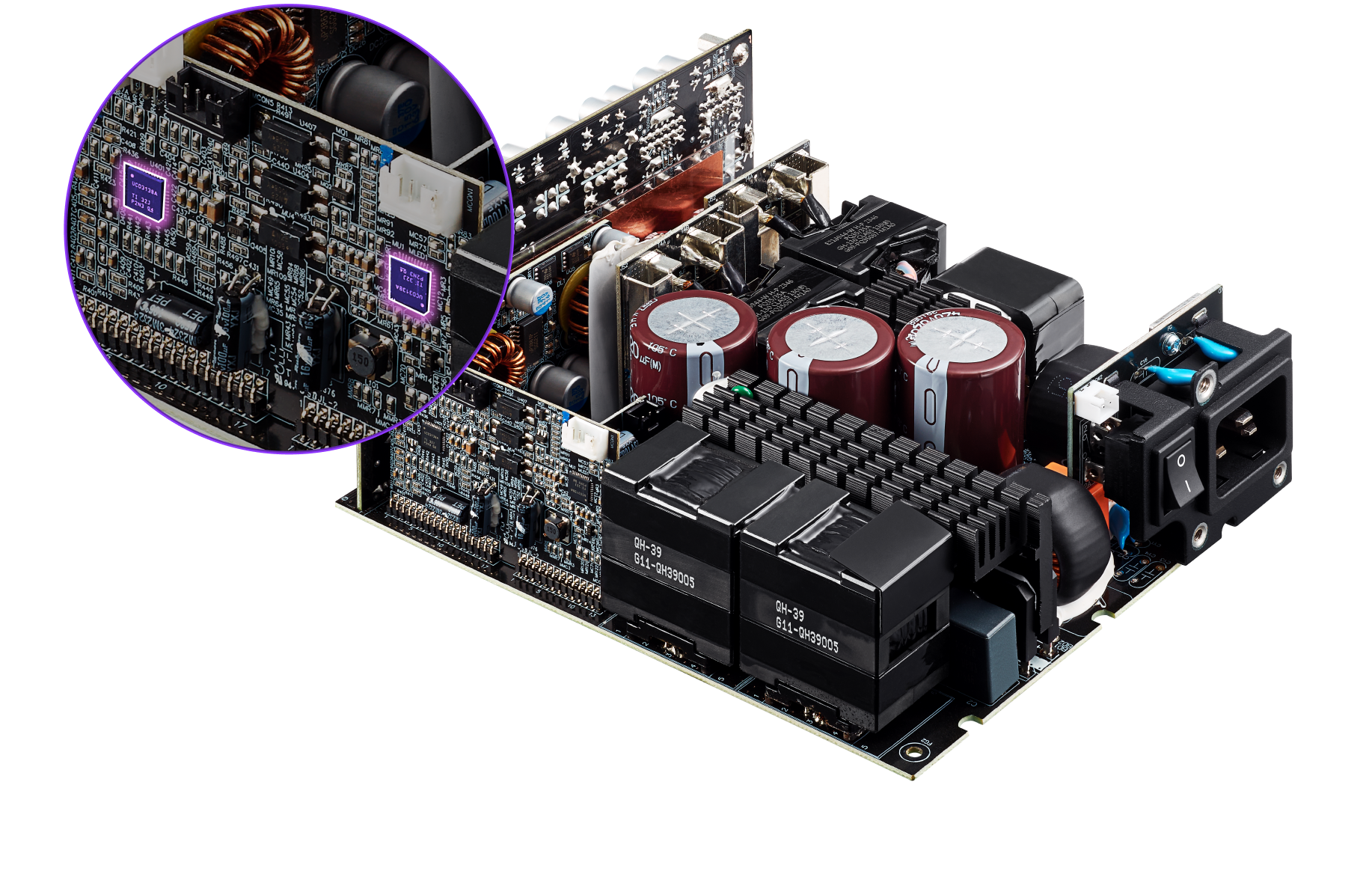

Digital Power

Enables precise voltage regulation, resulting in higher efficiency and lower ripple noise.

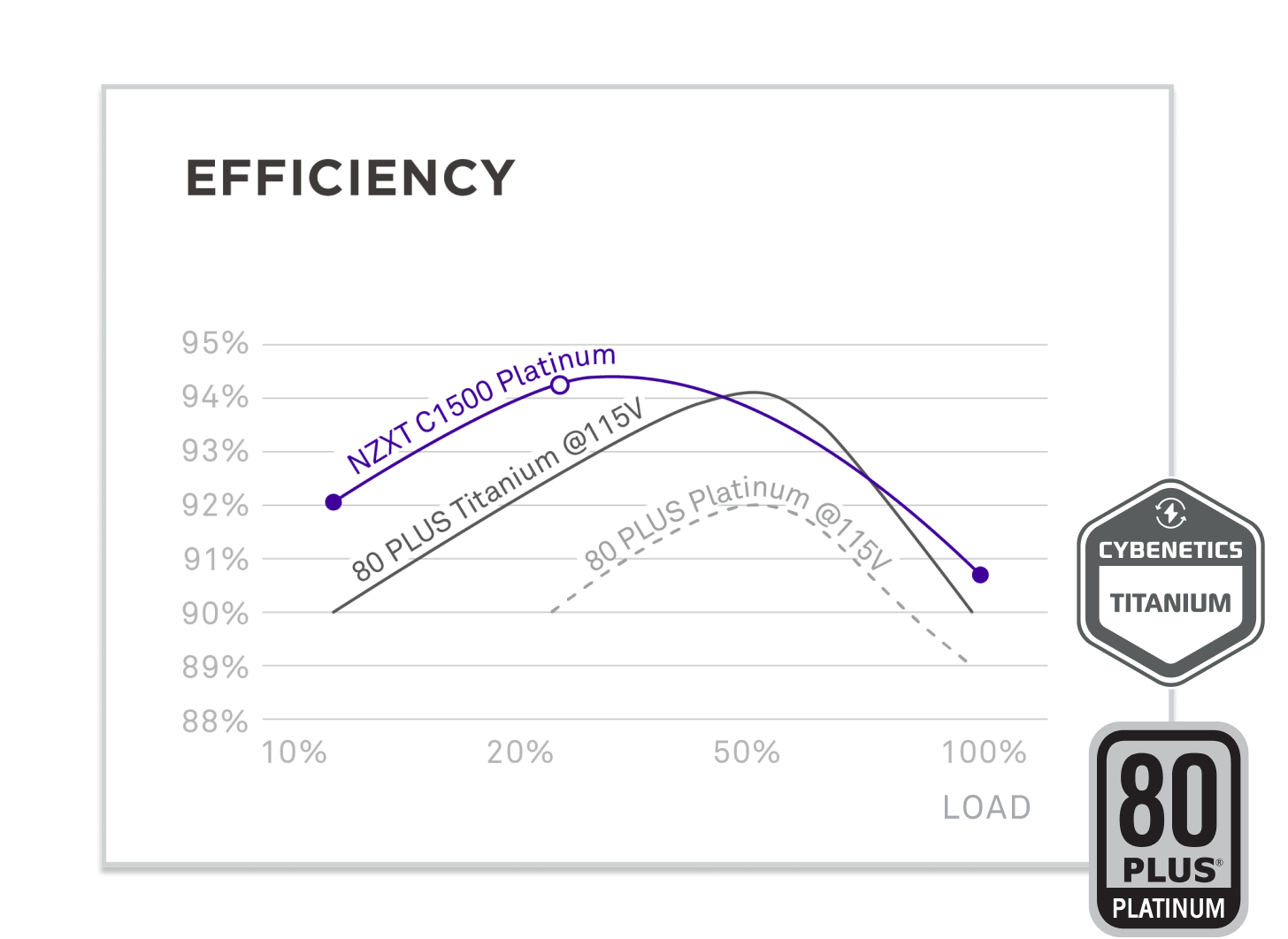

Exceptional Efficiency

Exceeding 80 Plus Platinum standards, the 94% efficiency lowers power usage and ensures quieter, cooler operation.

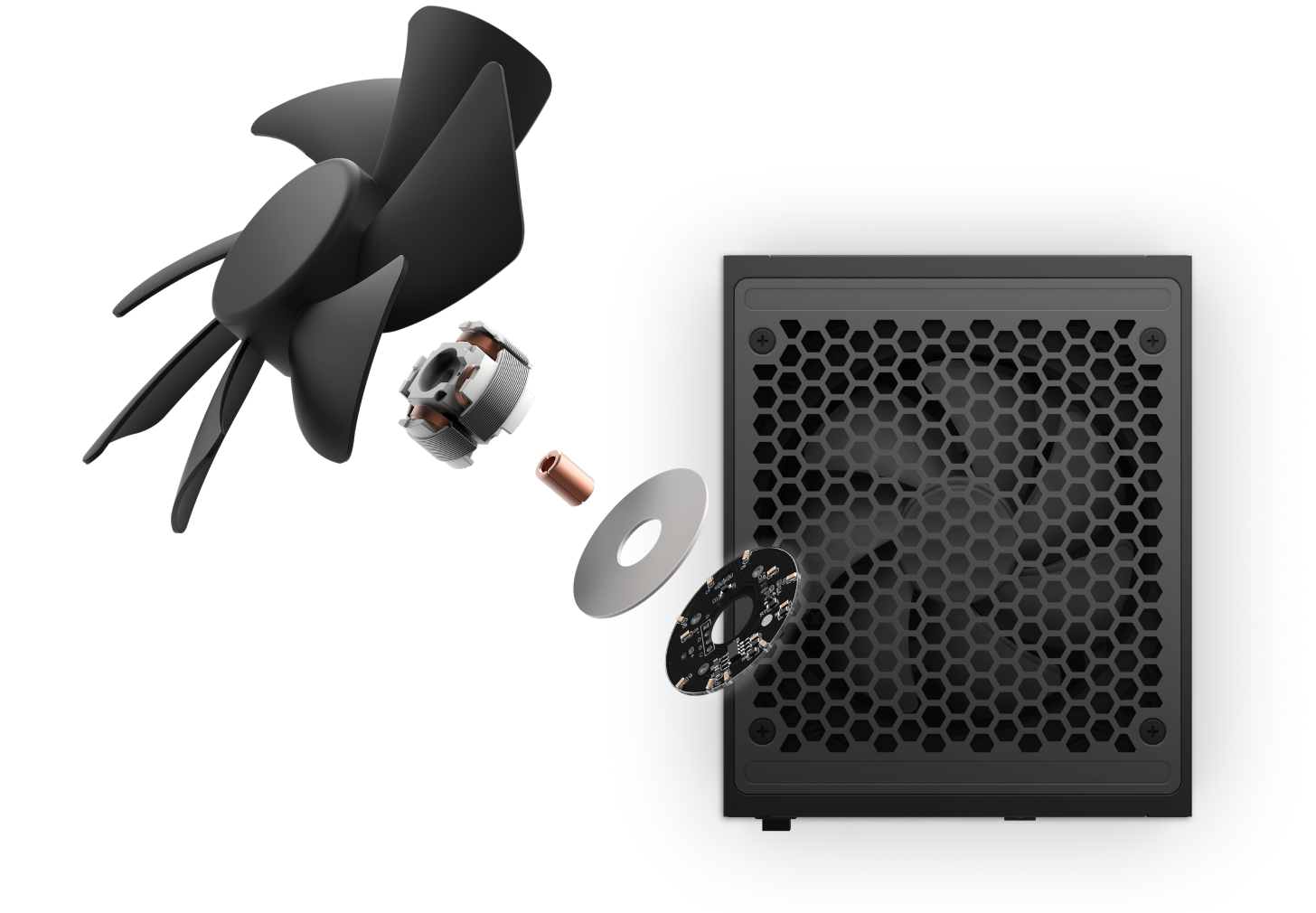

Magnetic Levitation Fan

140mm fan uses air-suspended blades to minimize noise, extend lifespan, and boost airflow.

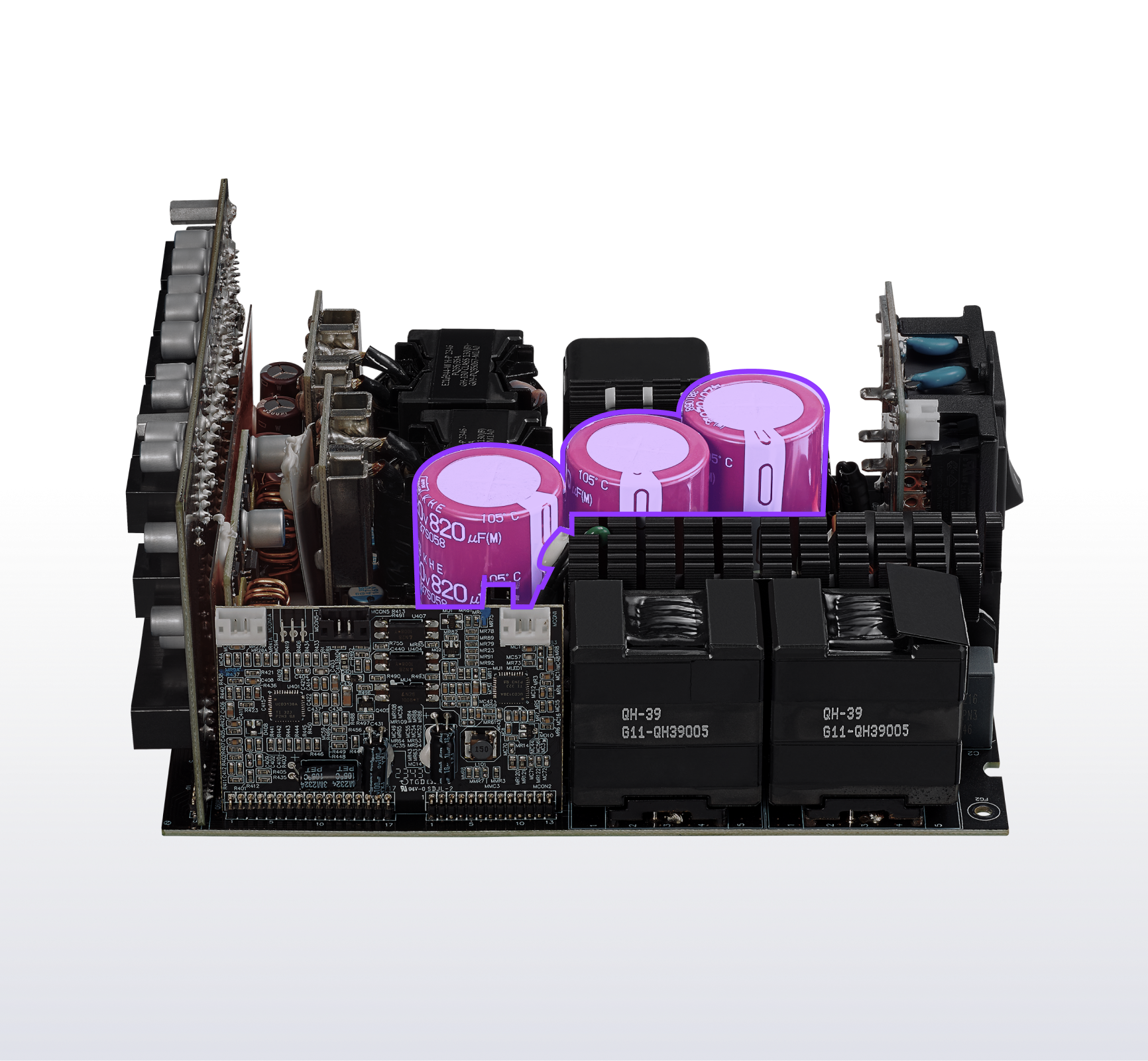

Built with Quality

Constructed using all 105°C Japanese capacitors for unmatched reliability.

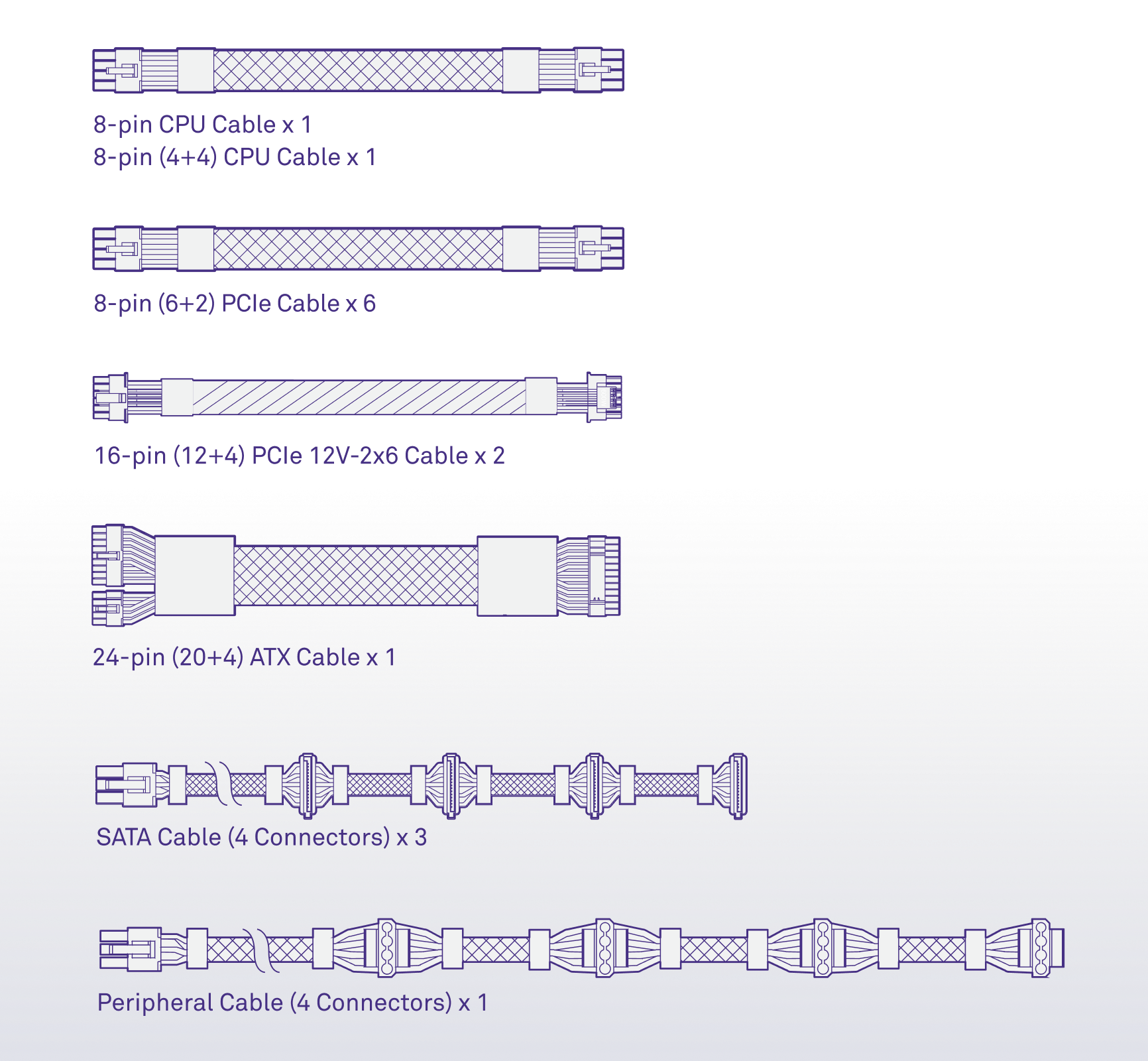

Fully Modular Design

Simplifies cable management by allowing connection of only necessary cables.

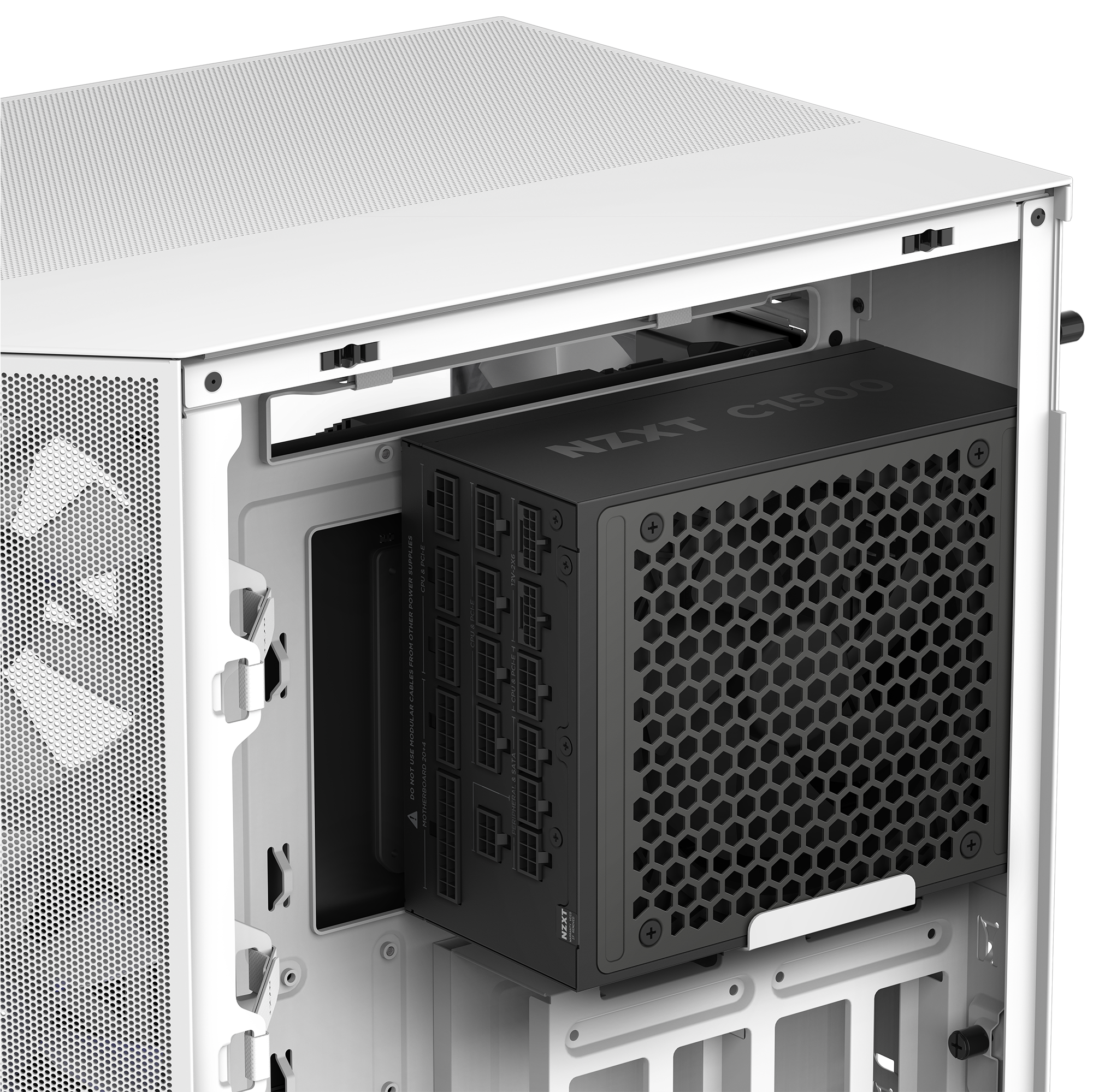

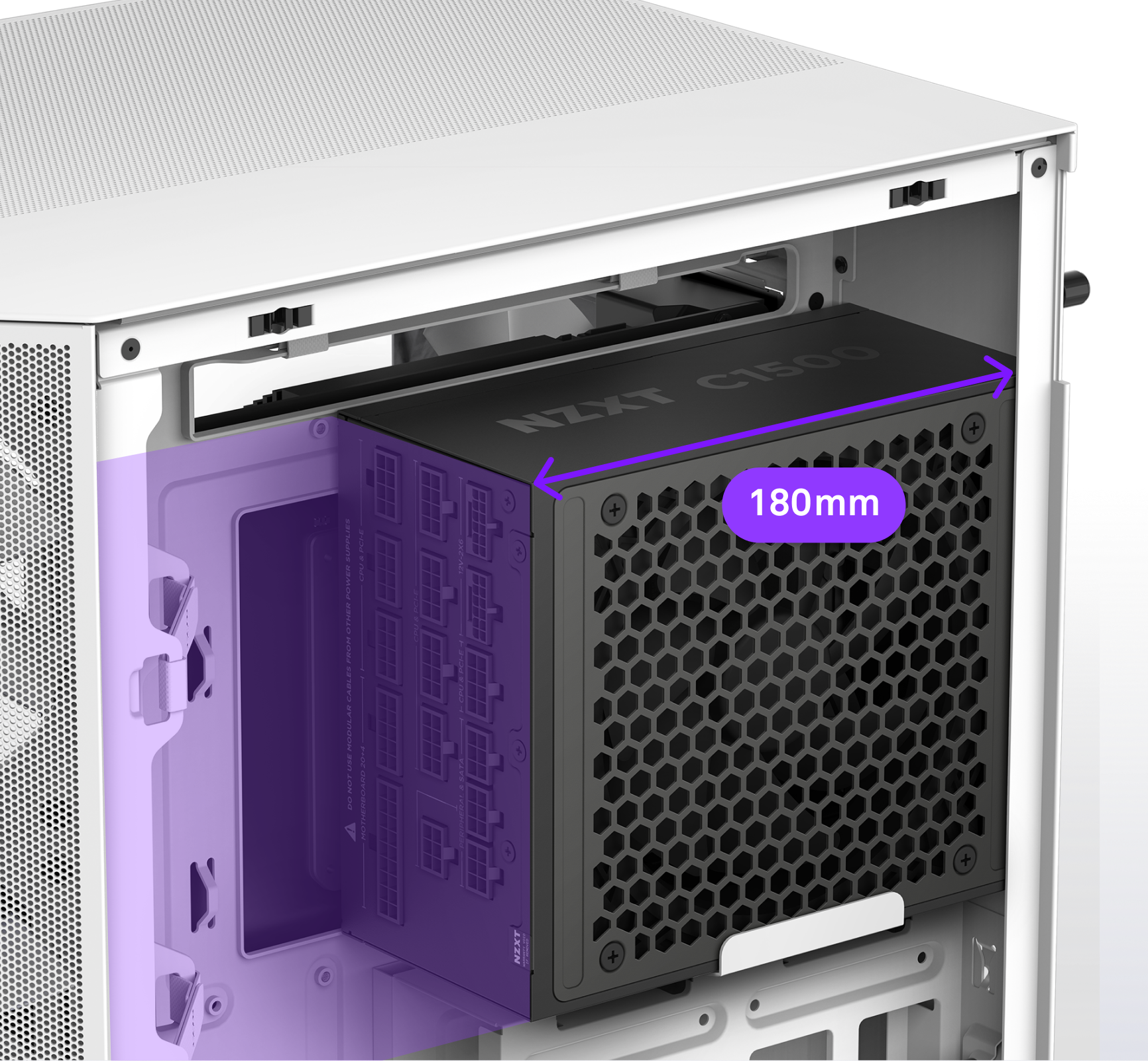

Space-Saving Size

Compact 180mm form factor optimizes case space while promoting improved airflow.

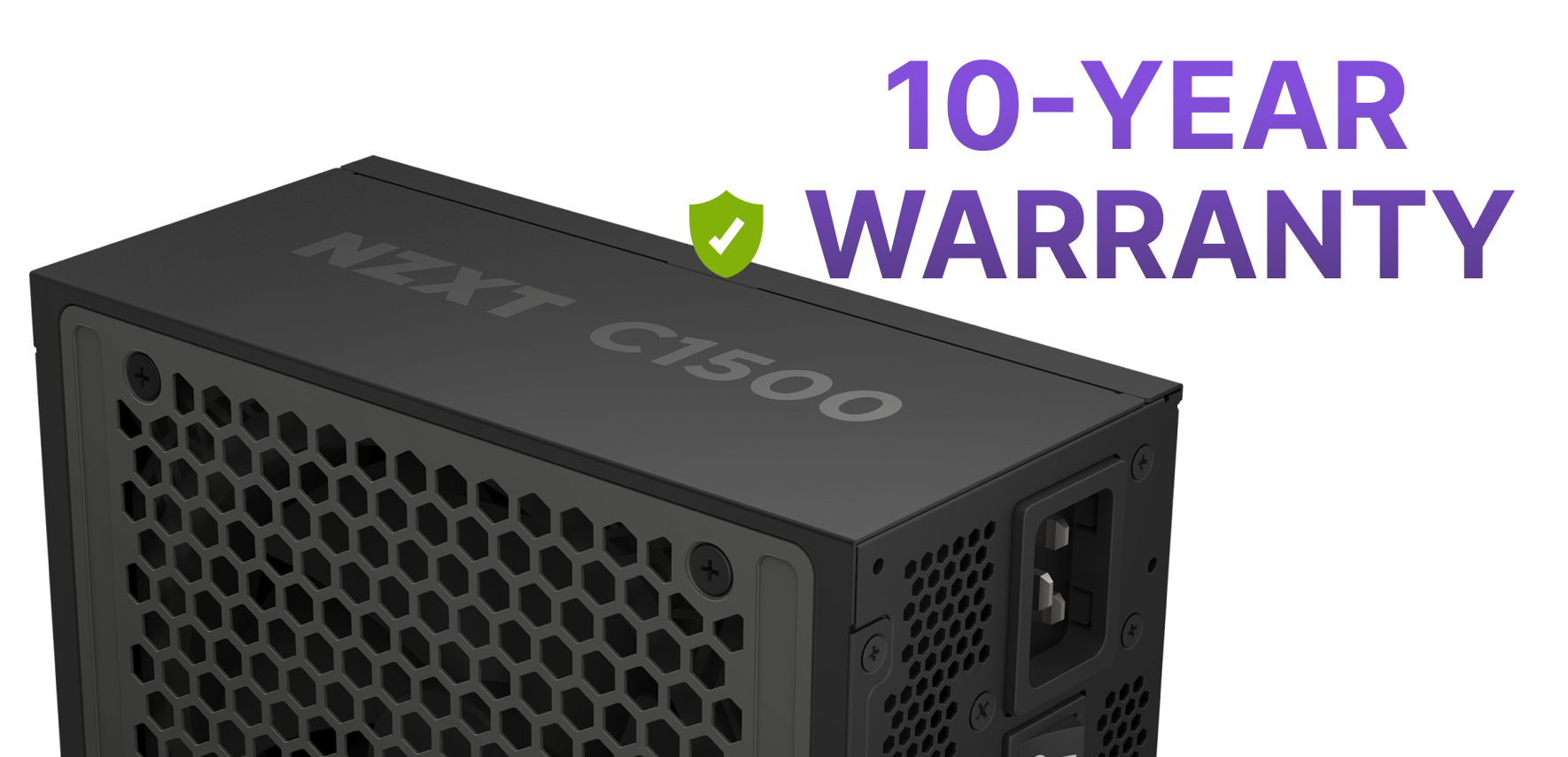

Peace of Mind

Backed by a 10-year warranty and reliable customer support.

Tech Specs

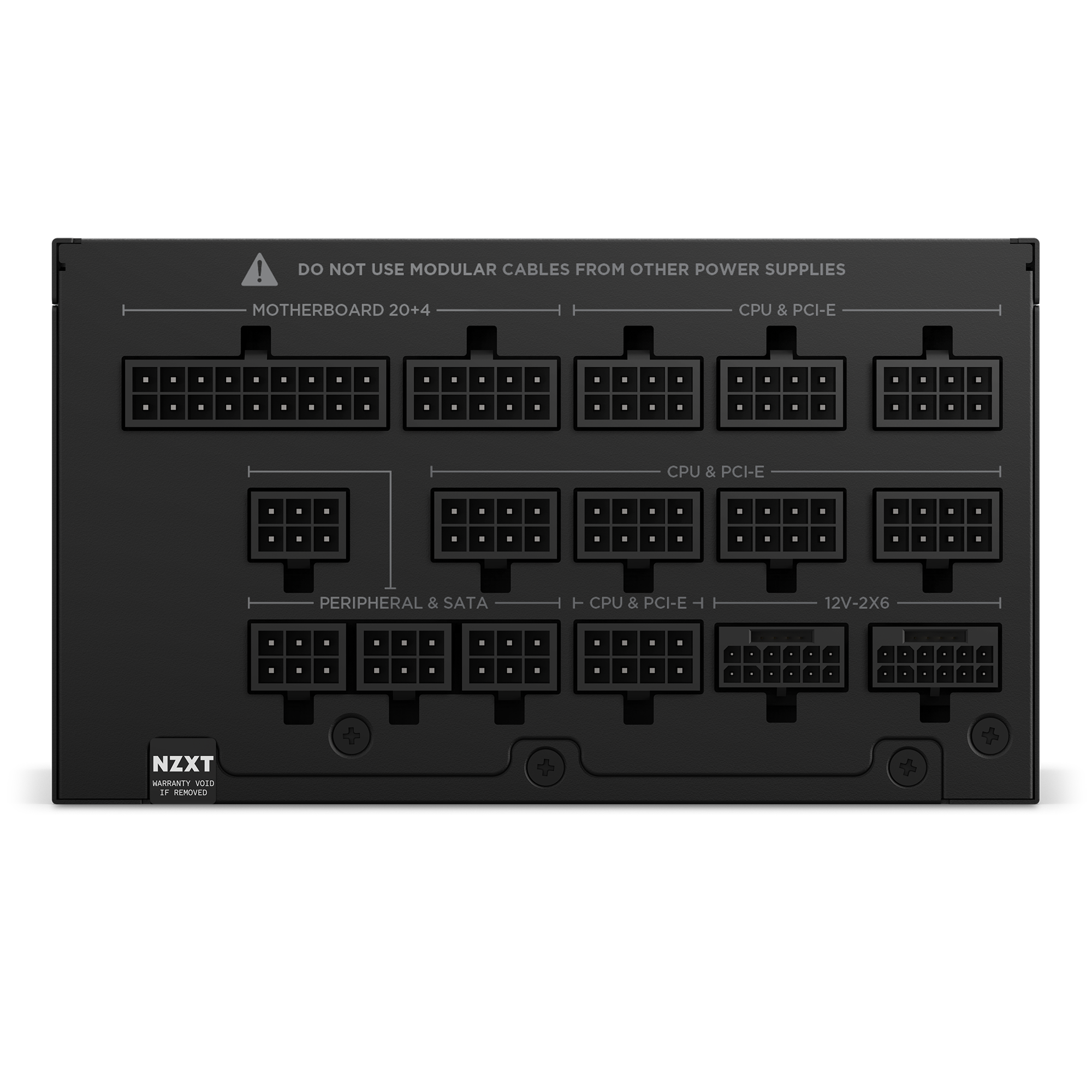

Output Connectors

  • 24-pin ATX Power Cable:1

  • 4+4-pin CPU Power Cable:1

  • 8-pin CPU Power Cable:1

  • 6+2-pin PCIe Power Cable:6

  • 16-pin (12+4) 12V-2x6 PCIe Cable:2

  • SATA Cable:12

  • Peripherals Cable:4

Cable Specs

  • 24-pin ATX Power Cable:600mm with nylon sleeving

  • 4+4-pin CPU Power Cable:700mm with nylon sleeving

  • 8-pin CPU Power Cable:700mm with nylon sleeving

  • 6+2-pin PCIe Power Cable:650mm with nylon sleeving

  • 16-pin (12+4) 12V-2x6 PCIe Cable:650mm with nylon sleeving

  • SATA Cable:500 + 150 mm with nylon sleeving

  • Peripherals Cable:500 + 150 mm with nylon sleeving

AC Input Rating

  • 100 - 240Vac:15A-9A 50Hz-60Hz

  • 200 - 240Vac:9A 50Hz-60Hz

DC Output Rating

  • 3.3V / +5V:22A (120W)

  • 12V:125A (1500W)

  • 5Vsb:3A (15W)

  • Total:1500W (115-240Vac) / 1300W (100-115Vac)

Energy Efficiency

  • Rating:80 Plus Platinum

  • 10% loading:92% @115Vac

  • 20% loading:94% @115Vac

  • 50% loading:93.8% @115Vac

  • 100% loading:90.8% @115Vac

Electrical Features

  • PF Correction:Active @0.99

  • Protections:OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) /

Fan Specs

  • Dimensions:140 x 140 x 25 mm

  • Speed:2500 ± 10% RPM

  • Airflow:125 CFM (Tpy.)

  • Noise:41.0 dBA max

  • Bearing:Magnetic Levitation Bearing (ML)

Operation

  • MTBF:100,000 hours

  • Temperature:0 - 50 °C

Dimensions

  • Width:5.91 in / 150 mm

  • Height:3.39 in / 86 mm

  • Depth:7.09 in / 180 mm

General

  • Material(s):Steel, PCB and Plastic

  • Compliance Standard:ATX12V v3.1 / EPS12V v2.92

  • Regulation & Certification:FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65

  • Warranty:10 Years

  • Model Number:PA-5P1BB-US / PA-5P1BB-EU / PA-5P1BB-UK / PA-5P1BB-CN / PA-5P1BB-JP / PA-5P1BB-AU

  • EAN:5056547203645 (US) / 5056547203652 (EU) / 5056547203669 (UK) / 5056547203638 (CN) / 5056547203676 (JP) / 5056547203683 (AU)

  • UPC:810074843720 (US) / 810074843737 (EU) / 810074843744 (UK) / 810074843713 (CN) / 810074843751 (JP) / 810074843768 (AU)
