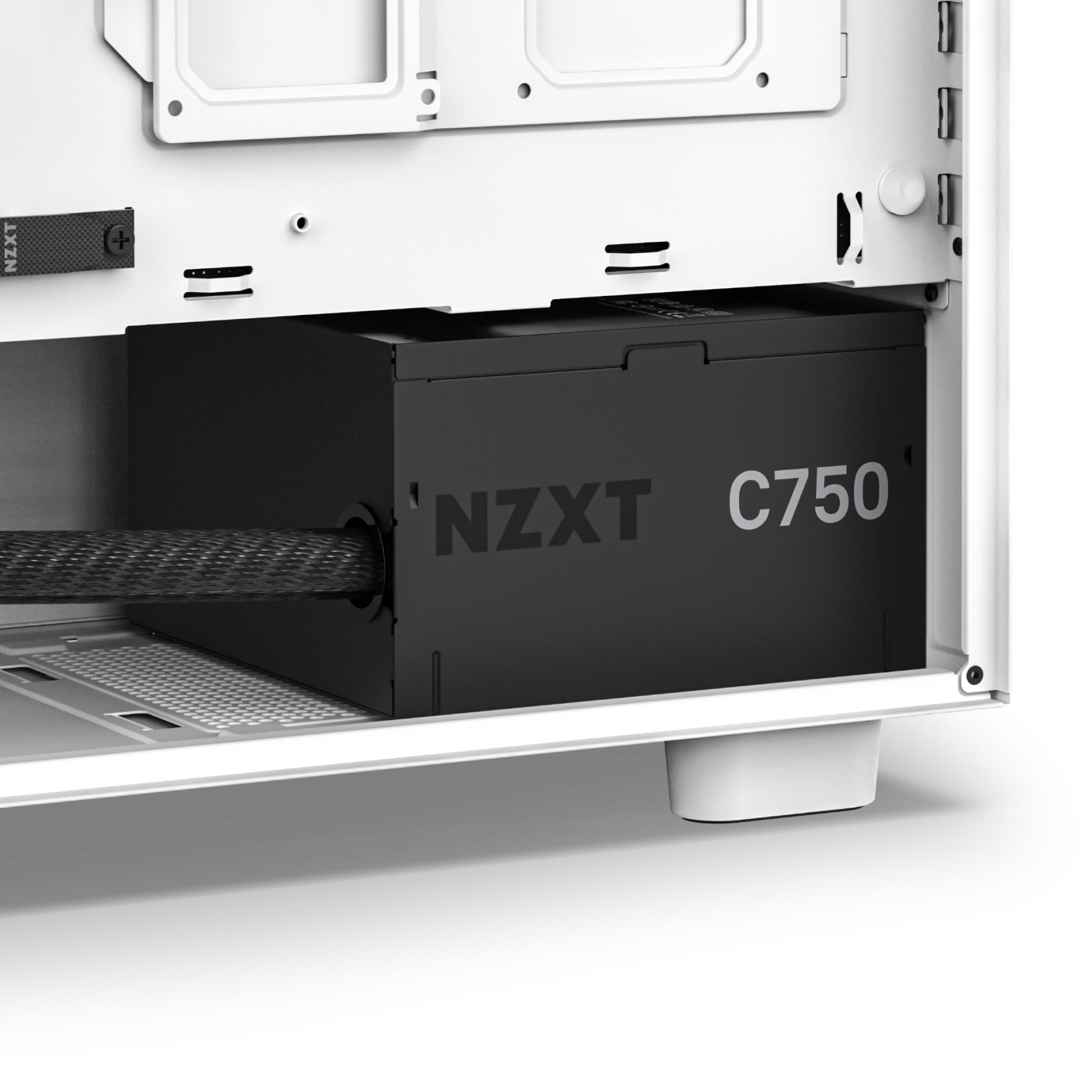

C750 Bronze (2023)

750W Bronze Non-Modular ATX PSU

Sale price$99.99
Color:Black
Notify Me

Overview

The C750 Bronze (2023) offers entry-level high-performance power for any gamer looking to start their PC gaming journey.

  • Up to 88% efficiency at 50% load exceeds 80 Plus Bronze standards, reducing energy waste and heat.
  • A 120mm fluid dynamic bearing fan delivers low-noise performance with enhanced longevity.
  • DC-to-DC conversion ensures consistent power delivery to GPUs up to 220W, such as the RTX 3070.
  • Tested for safety at up to 40°C, and features over-temperature and over-current protections.
  • Main PSU cables are nylon-sleeved for durability with a matte black finish to match any build.

Reliable Power

DC-to-DC conversion ensures consistent power delivery to GPUs up to 220W, such as the RTX 3070.

Highly Efficient

Up to 88% efficiency at 50% load exceeds 80 Plus Bronze standards, reducing energy waste and heat.

Quiet Cooling

A 120mm fluid dynamic bearing fan delivers low-noise performance with enhanced longevity.

Enhanced Safety

Tested for safety at up to 40°C, and features over-temperature and over-current protections.

Durable & Sleek

Main PSU cables are nylon-sleeved for durability with a matte black finish to match any build.

Tech Specs
Output Connector(s)
24-pin ATX Power
1
4+4-pin CPU power
2
6+2-pin PCIe power
2
SATA Power
4
Peripherals
4
Cable Specs
24-pin ATX power
600mm, Nylon sleeving
4+4-pin CPU power
700mm, Nylon sleeving
6+2-pin PCIe power
650 + 150mm, Nylon sleeving
SATA power
500 + 150 mm
Peripherals
500 + 150 mm
AC Input Rating
100 - 240Vac
10A-5A 50Hz-60Hz
DC Output Rating
+3.3V
20A (120W)
+5V
20A (120W)
+12V
62.5A (750W)
-12V
0.3A (3.6W)
5Vsb
2.5A (12.5W)
Total
750W
Operation
PF Correction
Active@0.96
MTBF
100,000 hours
Operation Temperature
0 to 40°C
Energy Efficiency
Rating
80 Plus Bronze
10% loading
86.2% @115Vac
20% loading
88.97% @115Vac
50% loading
88.7% @115Vac
100% loading
83.2% @115Vac
Fan Specs
Dimensions
120 x 120 x 25 (mm)
Speed
2400 ±10% RPM
Airflow
64.4 CFM (Tpy.)
Noise
39.92 dBA max
Bearing
FDB (Fluid Dynamic Bearing)
General
Dimensions (W x L x H)
150 x 140 x 86mm
Material(s)
Steel, PCB and Plastic
Compliance Standard
ATX12V v2.53 / EPS12V v2.92
Regulation & Certification
FCC, Canada, CE, CB(IEC 62368-1), BIS, UKCA, CCC, BSMI, Mexico NOM
Hazardous Materials
Taiwan and China RoHS Table, CP65, EU REACH
Protections
OVP / UVP / SCP / OTP / OPP / OCP
Warranty
Warranty
3 years
Model Number
Model Number
PA-7B2BB / PS-2202
