This product is no longer available. Please visit our Power Supplies category page to find similar products.

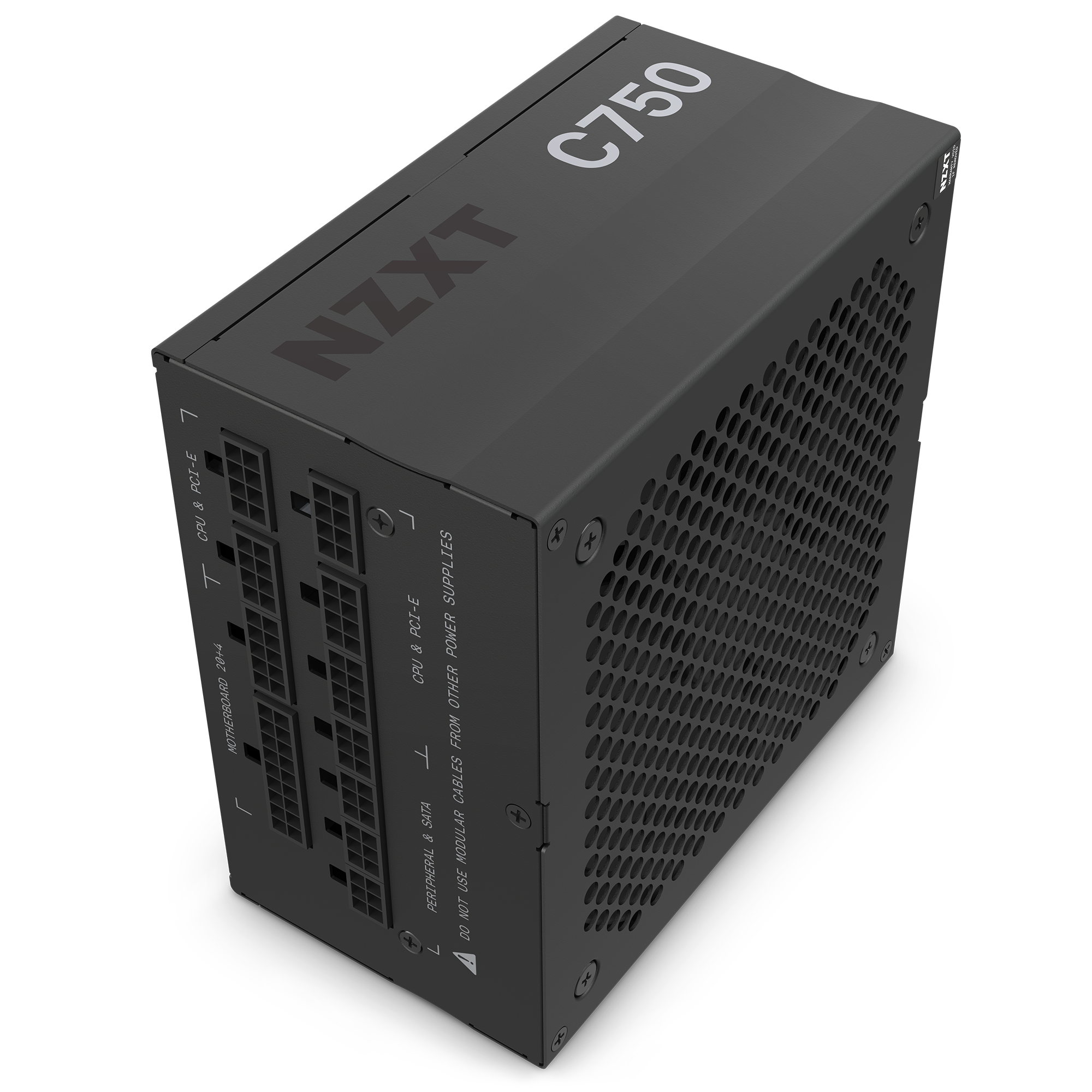

This PSU delivers 750 watts of clean, stable power which is plenty for most gaming needs while providing headroom for future upgrades and is an ideal wattage to start overclocking.
- Modular design lets builders use only the cables they need
- The sleeved main cables resist heat damage as well as fraying
- Fits any case conforming to the ATX standard
- Supports NVIDIA GPUs up to 3090 and AMD GPUs up to RX 6800 XT
- Zero RPM Fan mode silences the fan under low-load conditions
- Dynamic 120mm fluid-dynamic bearing fan
- 10-year warranty
Inside the Box
C750 (2019) Power Supply1
24-Pin ATX Power Cable1
4+4-Pin CPU Power Cables2
6+2-pin PCIe Power Cable2
SATA Cables2
Peripherals Cables2
6-32 Screws4
Tech Specs
Output Connectors
24-pin ATX power:1
4+4-pin CPU power:2
6+2-pin PCIe power:4
SATA power:8
Peripherals:6
Cable Specs
24-pin ATX power:610 mm, Nylon sleeving
4+4-pin CPU power:650 mm, Nylon sleeving
6+2-pin PCIe power:675 + 75 mm, Nylon sleeving
SATA power:500 + 100 + 100 + 100 mm
Peripherals:500 + 100 + 100 mm
AC Input Rating
100 - 240Vac:10-5A, 50-60Hz
DC Output Rating
+3.3V and +5V:20A (Combined 100W)
+12V:62A (744W)
-12V:0.3A (3.6W)
5Vsb:3A (15W)
Total:750W
Operation
PF Correction:Active @0.99
MTBF:100,000 hours
Temperature:0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
Energy Efficiency
Rating:80 Plus Gold
20% loading:87% @115Vac
50% loading:90% @115Vac
100% loading:87% @115Vac
Fan Specs
Dimensions:120 x 120 x 25 mm
Speed:0 - 2,200 ± 200 RPM
Airflow:73.9 CFM
Noise:32.3 dBA
Bearing:Fluid Dynamic Bearing (FDB)
General
Dimensions:150 x 150 x 86 mm
Material(s):Steel, PCB and plastic
Compliance Standard:ATX12V v2.4 / EPS12V v2.92
Regulation & Certification:CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI / Australia RCM / EAC
Warranty:10 years
Model Number:NP-C750M
UPC
UPC (TW):815671015679
UPC (CN):815671015839
UPC (AR):815671015853
UPC (US):815671015860
UPC (EU):815671015877
UPC (UK):815671015884
UPC (AU):815671015891
UPC (JP):815671016003
UPC (WO):815671015907
EAN
EAN (TW):5060301695539
EAN (CN):5060301695669
EAN (AR):5060301695683
EAN (US):5060301695690
EAN (EU):5060301695706
EAN (UK):5060301695713
EAN (AU):5060301695720
EAN (JP):5060301695836
EAN (WO):5060301695737
