RGB Series

F120 RGB Core Triple Pack

New

F120 RGB Core Triple Pack

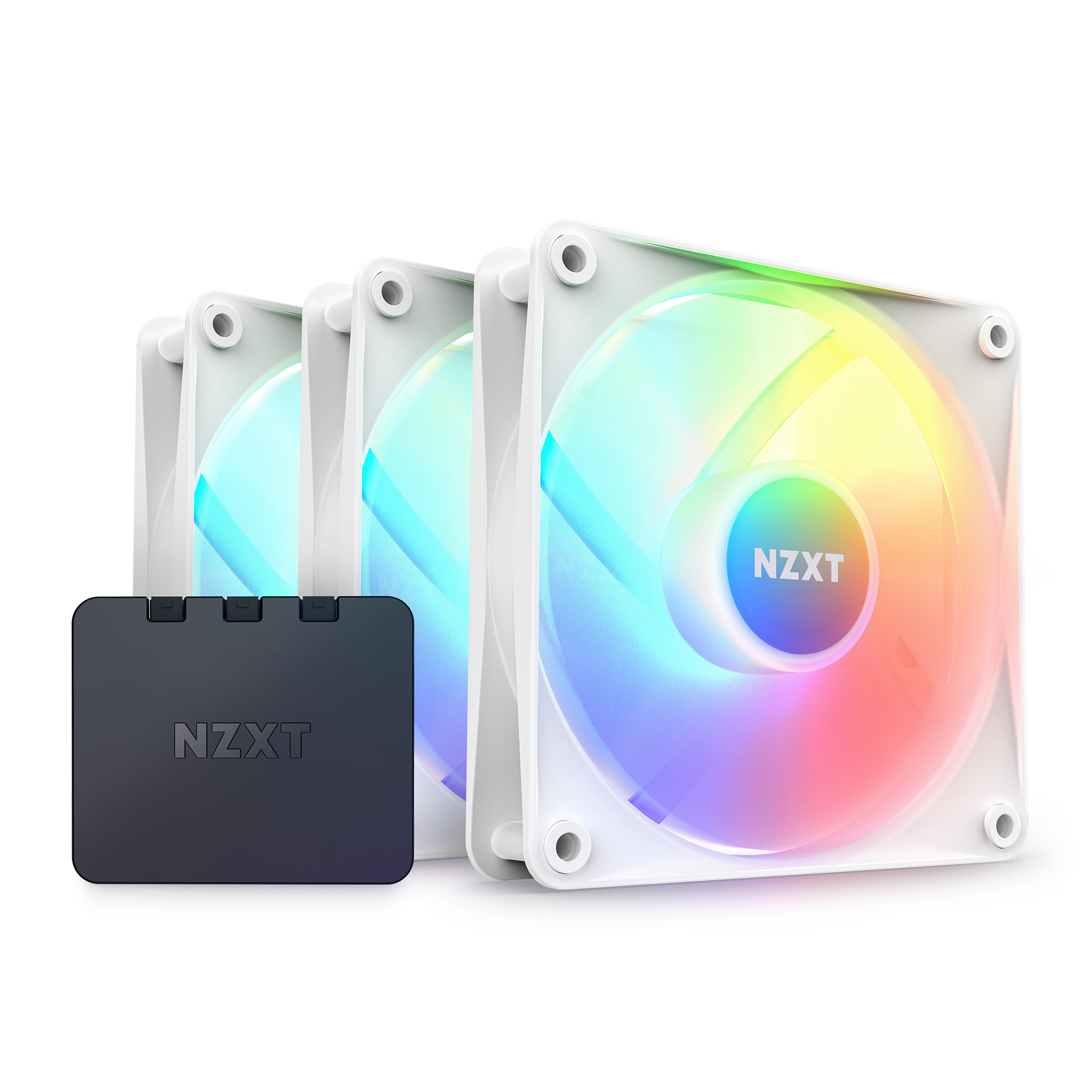

3 x 120mm Hub-Mounted RGB Fans & Controller

$69.99

Customize

Color:

Matte White

Series:

RGB
Buy
Built to order. Ships by 12/26/24
CAM Enabled

Return Policy: NZXT Return Policy

Warranty Policy: NZXT Warranty

Have questions?

Our experts are ready to help.

Chat Now
customer support

Overview

Details

The F Series RGB Core Fans offer brilliant lighting with eight individually addressable RGB LEDs and premium cooling with high static pressure.

  • Eight Individually addressable LEDs mounted on the fan hub are perfectly diffused through the semi-translucent blades for a sublime lighting effect.
  • A refined hub and blade design offer enhanced static pressure by pushing air through your radiator while providing great airflow. This allows for superior heat dissipation when paired with a liquid cooler or heatsink and used as intake, or exhaust.
  • Personalized lighting combinations through NZXT CAM software.
  • Seamlessly sync it with all your compatible NZXT lighting accessories.
  • The PWM-controlled fan allows speed adjustment, offering the best cooling possible without compromising noise level.
  • Fluid Dynamic Bearings deliver high rotational stability while reducing bearing noise and increasing fan lifespan up to 60,000 hours.
  • Anti-vibration rubber corners dampen vibration noise at any speed.
  • Triple and twin packs include an NZXT RGB Controller with three channels for synchronized lighting control.

Inside the Box

  • 120mm RGB Fan3

  • Mounting Screws12

  • RGB Controller1

Sublime RGB Lighting

8 individually addressable RGB LEDs mounted on fan hub are diffused through the semi-translucent blades.

Optimized Design

Fan hub and blades deliver high airflow and static pressure for both intake or exhaust locations.

Fluid Dynamic Bearing

Ensures low noise, high rotational stability, and a 60,000-hour fan lifespan.

PWM Control

Adjusts fan speed for optimal cooling only when needed for a quiet, efficient experience.

Silent and Stable

Anti-vibration rubber corners and the sturdy frame provide quiet and stable operation.

Customize with CAM

Control fan curves and speeds, personalize RGB lighting effects, and sync with other NZXT lighting products.

Tech Specs

Key Specs

  • Material:Plastic, rubber, PCB

  • Fan Rated Voltage:12 V DC, 0.2 A, 2.4 W

  • LED Quantity:8

  • Bearing:Fluid Dynamic Bearing (FDB)

  • Fan Connector:4-pin PWM

Dimensions

  • Height:120mm

  • Width:120mm

  • Depth:26mm

Cooling

  • Speed:500 - 1,800 ± 180RPM

  • Airflow:78.86 CFM

  • Static Pressure:2.57 mm H2O

  • Noise:33.88 dBA

  • Bearing:Fluid Dynamic Bearing

  • Power Consumption:12 V DC, 0.2 A, 2.4 W

  • Connector:4-pin PWM

  • Output LED:8 LEDs

  • Connections & Cable Length (PWN):4-pin PWM Fan Cable – 600mm x1

  • Connections & Cable Length (NZXT):4-pin NZXT RGB Cable – 600mm x1

Fan Life

  • Hours:60,000

  • Years:6

RGB Controller

  • Dimensions:63.2 x 53.2 x 12.8mm

  • Weight:52.8g

  • Material(s):Plastic, PCB, Magnets

  • Mounting:2x 3M Dual Lock

  • Connections:1 x USB 2.0 Header, 1 x SATA

  • Input Connector:12V DC / 2.6A

  • Output Channel Voltage:5V DC

  • System Requirement:Requires a USB 2.0 internal connector

  • RGB Lighting Channels:3

  • Lighting channels support:Up to 40 LEDs per channel and up to 120 LEDs combined total for the total 3 channels

General

  • Warranty:2 years

  • Model Number:RF-C12TF-W1 (White) / RF-C12TF-B1 (Black)

  • UPC:810074843072 (White) / 810074843065 (Black)

  • EAN:5056547203010 (White) / 5056547203003 (Black)

  • System Requirement:PC with available NZXT RGB lighting connector and Windows 11/10 operating system.

Questions And Answers

Downloads

Documentation

Download Product Manual pdf

Product Manual

1.8 MB(pdf)

NZXT CAM

Manage performance, temperatures, and devices all from a single application.

Free Download

Windows 10 64BIT/Windows 11
