H5 Flow (2022)

4.5
Rated 4.5 out of 5 stars
4.5 Stars (274 Reviews)

Compact Mid-tower Airflow Case

Sale price$79.99 Regular price$94.99
$15 Off
Color:White
Notify Me

Overview

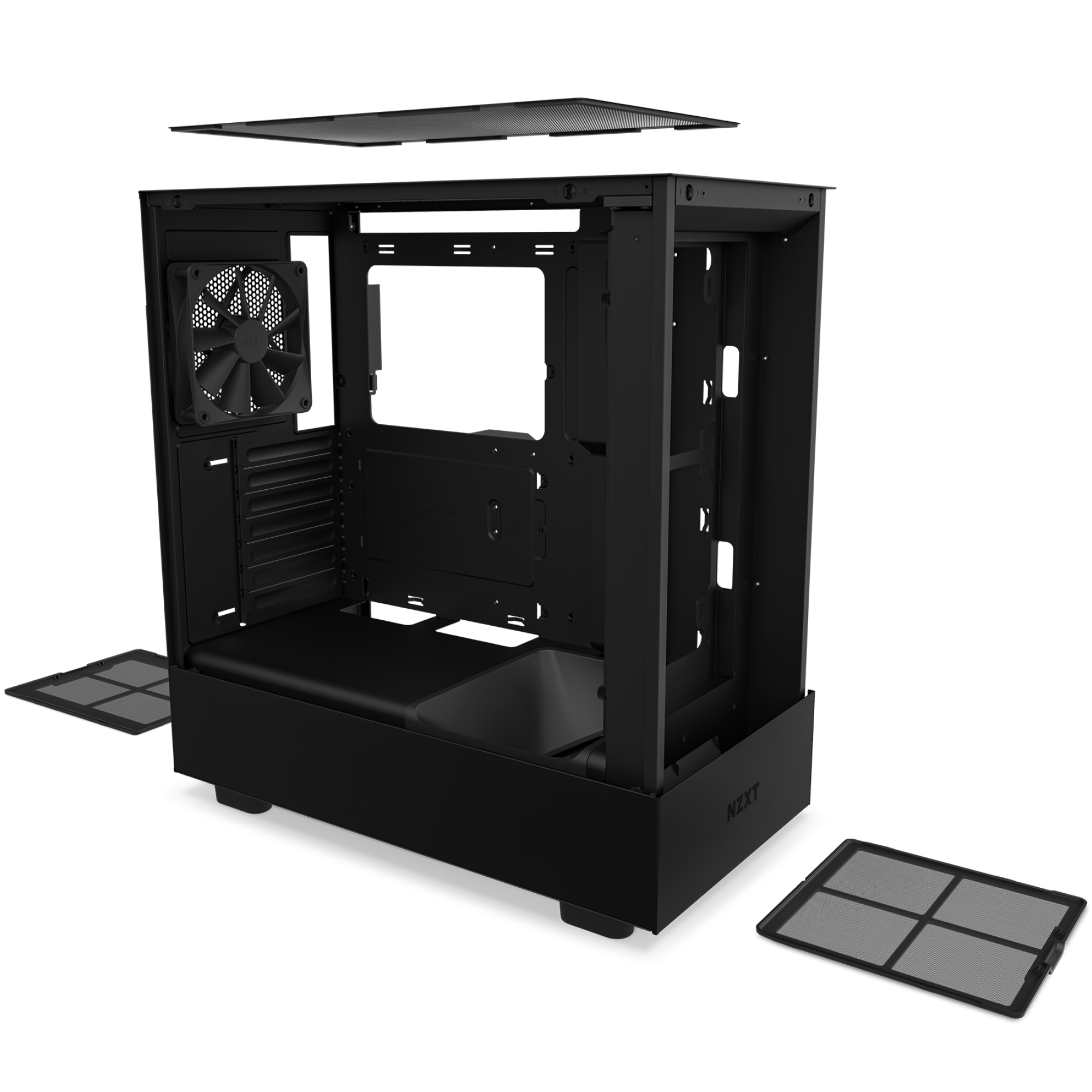

The H5 Flow (2022) features a perforated front panel to generate an extra dimension of airflow for maximum cooling potential. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds.

  • Dedicated fan on bottom inside panel is angled to cool GPU
  • Perforated front panel provides optimal ventilation
  • Intuitive cable management system with wide channels, hooks, & straps
  • Tool less access to front and side panels
  • Front panel supports up to 2 x 140mm fans or 280mm radiator
  • Top panel supports up to 2 x 120mm fans or 240mm radiator
  • Includes two pre-installed F120Q fans (Case Version)

Fan Capacity

Fan mounts offer space for two 140mm fans on the front panel and two 120mm fans on the top panel.

Radiator Capacity

The top panel offers space for a 240mm radiator and the front panel provides room for a 280mm radiator.

Tech Specs
Key Specs
Motherboard Support
Mini-ITX, Micro-ATX, ATX
Enclosure Type
Mid-Tower
Case Material
SGCC Steel; Ultra-clear Tempered Glass; Dark Tinted Tempered Glass (Black only)
Dimensions
Height
464 mm (with feet)
Width
227 mm
Depth
446 mm
Weight
7.01 kg
Compatibility & Clearance
Max CPU Cooler Clearance
Up to 165 mm
Max GPU Clearance
Up to 365 mm
Front Radiator Clearance
45 mm
Cable Management
Up to 23 mm
Front I/O Ports
USB 3.2 Gen 1 Type-A
1
USB 3.2 Gen 2×2 Type-C (20 Gbps)
1
Headset Audio Jack
1
Expansion Slots
Standard
7
Vertical
0
Drive Bays
2.5"
1+1
3.5"
1
Fan Support
Front
2 × 120 mm / 2 × 140 mm
Top
2 × 120 mm
Rear
1 × F Series Quiet 120 mm (included)
Bottom
1 × F Series Quiet 120 mm (included)
Radiator Support
Front
Up to 280 mm
Top
Up to 240 mm
Rear
Up to 120 mm
Fan Specs
Model
F120Q (Case Version)
Speed
1200 ± 240 RPM
Airflow
62.18 CFM
Static Pressure
1.05 mm H₂O
Noise
25.1 dBA
Connector
3-pin DC
General
Warranty
2 Years
Model Number
CC-H51FW-01 (White) / CC-H51FB-01 (Black)
UPC
810074842426 (White) / 810074842419 (Black)
EAN
5056547202341 (White) / 5056547202334 (Black)
