H6 Flow
Best Seller
H6 Flow
Compact Dual-Chamber Mid-Tower Airflow Case
$109.99
Color:
Matte White
Series:
H6Sold Out
N7 B650E
Color:
White
$249.99+ $319.99
$80 Off
Kraken Elite 360 (2023)
Color:
Matte Black
$199.99+ $279.99
$30 Off
C850 Gold (2022)
Color:
Matte Black
$109.99+ $139.99
Return Policy: NZXT Return Policy
Warranty Policy: NZXT Warranty
Buy Together
Take your build to the next level with expert recommended products
Overview
Details

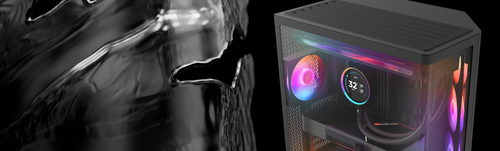

Experience peak performance within an innovative compact dual-chamber. Prioritizing GPU cooling, the H6 Flow's panoramic glass showcases the interior while freeing up space for improved airflow.
- Wraparound glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components.
- Compact dual-chamber design improves overall thermal performance and creates a clean, uncrowded aesthetic.
- Includes three pre-installed 120mm fans (Case Version) positioned at an ideal angle for superb out-of-the-box cooling.
- The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust.
- An intuitive cable management system simplifies the build process by using wide channels and straps.
- Tool-free access to the top and side panels makes upgrading quick and convenient.
- Top panel supports radiators up to 360mm in length. Up to 365mm GPU and 200mm PSU clearance
Inside the Box
H6 Flow1
F120Q Airflow (Case Version)3
Installation Accessories1
User Guide1
Panoramic Paneling
Compact Dual-Chamber
Out-of-the-Box Cooling
High Performance Airflow
Cable Management
Tool-Free Entry
Spacious Support
"My case of the year is the NZXT H6 flow"
I can wholeheartedly recommend you to buy my case of the year — NZXT H6 flow. This whole angular intake is not a gimmick because performance is excellent on the CPU and the GPU as well. I love the visual lines, it's a very NZXT enclosure without introducing any visual clutter, and the metal mesh ventilation is decent.
-Hardware Canucks
Tech Specs
Key Specs
Motherboard Support:ATX, Micro-ATX, Mini-ITX
Enclosure Type:Mid-Tower
Case Material:SGCC Steel, Ultra-Clear Tempered Glass, Dark Tinted Tempered Glass (Black SKU only)
Dimensions
Height (with feet):435 mm / 17.13 in
Width:287 mm / 11.3 in
Depth:415 mm / 16.34 in
Weight:9.4 kg
Compatibility & Clearance
CPU Cooler Height:163 mm / 6.42 in
GPU Length:365 mm / 14.37 in
PSU Length:200 mm / 7.87 in
Cable Management:91 mm / 3.58 in
Top Radiator:30 mm / 1.18 in
Front I/O Ports
USB 3.2 Gen 1 Type-A:2
USB 3.2 Gen 2x2 Type-C (20 Gbps):1
Headset Audio Jack:1
Expansion Slots
Standard:7
Vertical:0
Drive Bays
2.5":2
3.5":1
Fan Support
Front-Right:3 x 120 mm (3x F120Q Case Version included)
Top:3 x 120 mm / 2 x 140 mm
Bottom:2 x 140 mm
Rear:1 x 120 mm
Filters:High-Performance Mesh
Radiator Support
Top:Up to 360 mm
Rear:Up to 120 mm
Fan Specs
Model:F120Q Airflow Fan (Case Version)
Speed:1200 ± 240RPM
Airflow:62.18 CFM
Static:1.05 mm - H2O
Noise:25.1 dBA
Fan Connector:3-pin
General
Warranty:2 Years
Model Number:CC-H61FW-01 (White) / CC-H61FB-01 (Black)
UPC:810074844130 (White) / 810074844147 (Black)
EAN:5056547204048 (White) / 5056547204055 (Black)
Reviews
Questions And Answers
Downloads
Documentation
Download Digital Manual pdf
5.4 MB(pdf)
Manage performance, temperatures, and devices all from a single application.
Windows 10 64BIT/Windows 11
