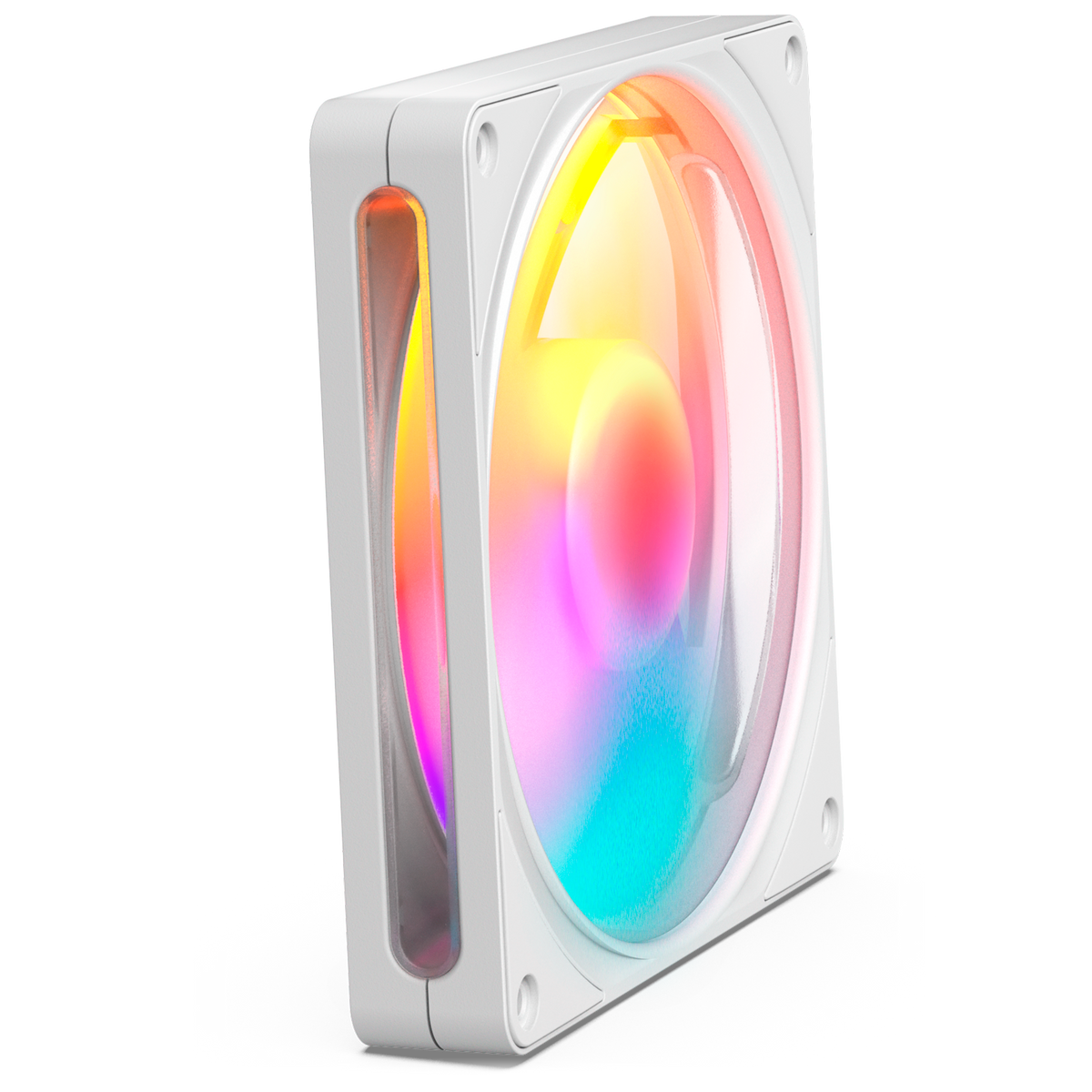

F140 RGB
140mm RGB Fan
Key Specs
Dimensions (L x W x H): 140 x 140 x 25 mm
Speed: 2,000 ± 200 RPM
Airflow: 91.83 CFM
Static Pressure: 4.23 mmH₂O
Noise Level: 34.03 dBA
LED Quantity: 8 LEDs
Power Connector: PWM 4-pin, NZXT 4-pin RGB, 5 V ARGB
Warranty: 5 years
Inside the Box
F140 RGB
Installation Accessories
Warranty & Return Policy
Warranty coverage — See NZXT warranty terms by product
Returns & exchanges — NZXT components and accessories are sold through authorized retailers. Start a return or exchange with the retailer you purchased from.
Warranty service — Submit a request to NZXT Support. Proof of purchase from an authorized NZXT retailer is required.
Resources
Overview
The NZXT RGB fan series pairs vibrant lighting with quiet, precision-engineered cooling. Choose from standard 120 mm and 140 mm fans, single-frame 360 mm and 420 mm designs that install with just four screws and one connection, or reverse-blade showcase models that put the clean, illuminated side front and center. Every fan features a 60,000-hour fluid dynamic bearing, anti-vibration corners, and full RGB and fan control through NZXT CAM or a compatible motherboard.
- Vibrant RGB: 8 addressable LEDs per fan hub with clear side windows
- Precision-engineered airflow with high static pressure
- Anti-vibration corners for whisper-quiet operation
- Single-frame 360 mm and 420 mm designs for simplified installation
- Reverse-blade 360 mm and 420 mm models for showcase builds
- 60,000-hour fluid dynamic bearing
- NZXT CAM compatible via NZXT Control Hub or motherboard
- Optional 5V ARGB header control for basic setups
LIGHT UP EVERY ANGLE.
NZXT RGB fans pair vivid RGB lighting with quiet, precision-engineered airflow — refined cooling that performs as well as it shines.
GLOW FROM EVERY ANGLE

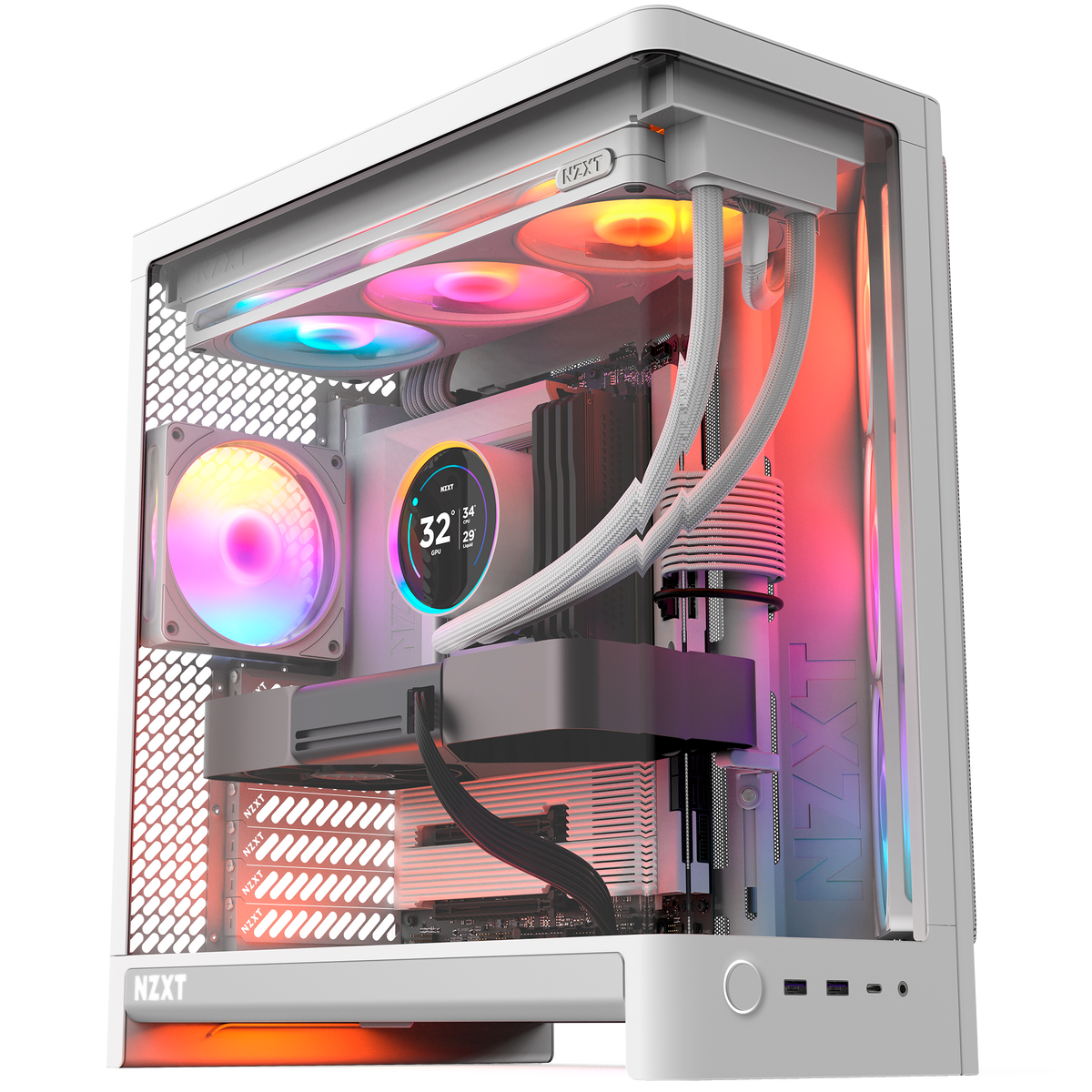

Clear side windows let RGB shine from multiple viewpoints, creating a polished, continuous look across your entire build.
CONTROL WITH CAM
Sync lighting, dial in fan curves, and monitor thermals from one interface.* *Requires NZXT Control Hub or NZXT motherboard. Sold separately.
OPTIONAL DIRECT MOTHERBOARD CONTROL
Connect to a 5V ARGB header for basic lighting and fan control. Check LED header compatibility.
PRECISELY ENGINEERED AIRFLOW
Optimized blade and frame geometry boost static pressure and airflow through radiators and dense mesh.
WHISPER-QUIET OPERATION
Anti-vibration corners and refined blade engineering cut noise, even at full speed.
BUILT TO LAST
Fluid dynamic bearings rated for 60,000+ hours deliver smooth, dependable cooling for years.
Tech Specs
Dimensions
- Dimensions (L x W x H)
- 140 x 140 x 25 mm
- Weight
- 250 g
Performance
- Speed
- 2,000 ± 200 RPM
- Airflow
- 91.83 CFM
- Static Pressure
- 4.23 mmH₂O
- Noise Level
- 34.03 dBA
- Fan Power Consumption
- 12 V DC, 0.22 A, 2.64 W
- Lighting Power Consumption
- 5 V DC, 0.3 A, 1.5 W
- Power Connector
- PWM 4-pin, NZXT 4-pin RGB, 5 V ARGB
- Bearing
- Fluid Dynamic Bearing
- Lifespan
- 60,000 hours
Construction
- Number of Blades
- 9
- LED Quantity
- 8 LEDs
- Cable Length
- 2 x 600 mm
- Materials
- PBT, PC, rubber, PCB
Product Info
- Warranty
- 5 years
- Model Number
- RF-R214S-WF (White) / RF-R214S-BF (Black)
- UPC
- 810074848589 (White) / 810074848572 (Black)
- EAN
- 5056547208435 (White) / 5056547208428 (Black)
Frequently Asked Questions
Should I choose the F140 RGB or the F120 RGB?
Go by the mount your case has. On a 140 mm mount the F140 RGB moves 91.83 CFM at 4.23 mmH2O, against 70.67 CFM at 3.7 mmH2O for the 120 mm model.
It also carries 16 LEDs to the F120 RGB's eight, and tops out at 2,000 RPM and 34.03 dBA.
How do I connect and control the lighting?
Two 600 mm cables: a 4-pin PWM lead for speed and an NZXT 4-pin RGB lead for lighting, with 3-pin 5V ARGB also supported.
An NZXT controller gives full effect control in NZXT CAM; a 5V ARGB header gives basic control from motherboard software.
Can I use the F140 RGB on a radiator?
Yes. At 4.23 mmH2O of static pressure and 91.83 CFM it has the pressure to work on a 280 mm radiator as well as in open case mounts.
Speed runs from 500 to 2,000 RPM under PWM control.
How long does it last?
The fluid dynamic bearing is rated for 60,000 hours, and the fan carries a 5-year warranty.
What colours is it available in?
Black and white. The frame uses PBT and PC with rubber anti-vibration corners, and measures 140 x 140 x 25 mm.
