H7 Elite
Rated 4.6 out of 5 stars
4.6 Stars (265 Reviews)
Premium ATX Mid-Tower
Optionen auswählen
H7 Elite Übersicht
The H7 Elite is the premier choice for enthusiasts, featuring a tempered glass front panel to show off three pre-installed F140 RGB Core Fans, a built-in RGB Controller, widened channels, hooks, straps, and toolless entry.
- Perforated top panel
- Intuitive cable management system with wide channels, hooks, & straps
- Tool-less access to front & side panels (tinted panels on black variant only) to front & side panels
- Front & top support radiators up to 360mm
- Three pre-installed F140 RGB Core Fans
- One pre-installed F140Q Airflow Fan (Case Version)
- Supports vertical GPU mounting (Sold Separately)
- RGB Controller
- Tempered glass front panel
- Two top-mounted USB 3.2 Type-A ports
- One top-mounted USB 3.2 Type-C port
- Two color options (Matte Black, Matte White)
Built-In RGB Lighting
Ready for Performance
Spacious Cooling Support

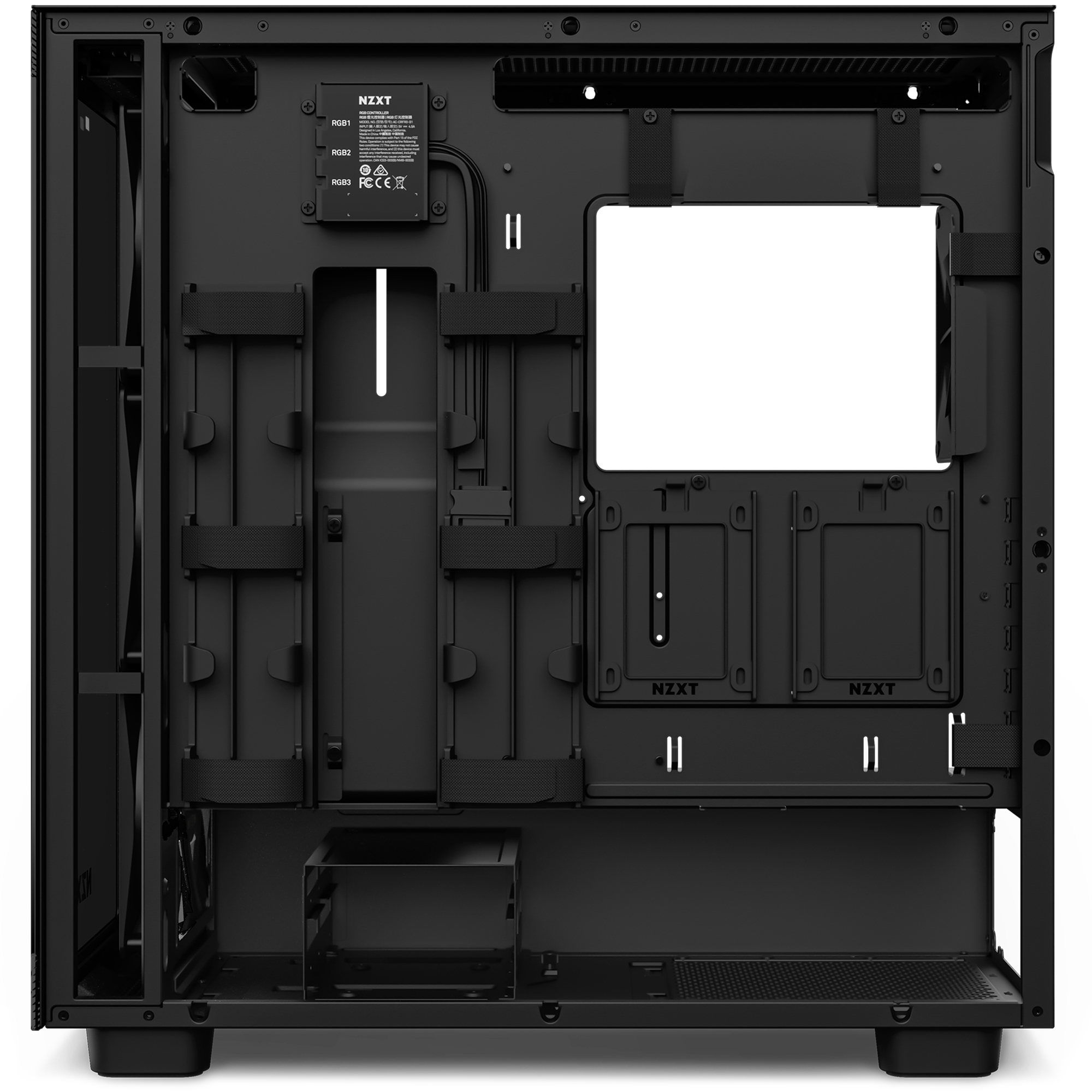

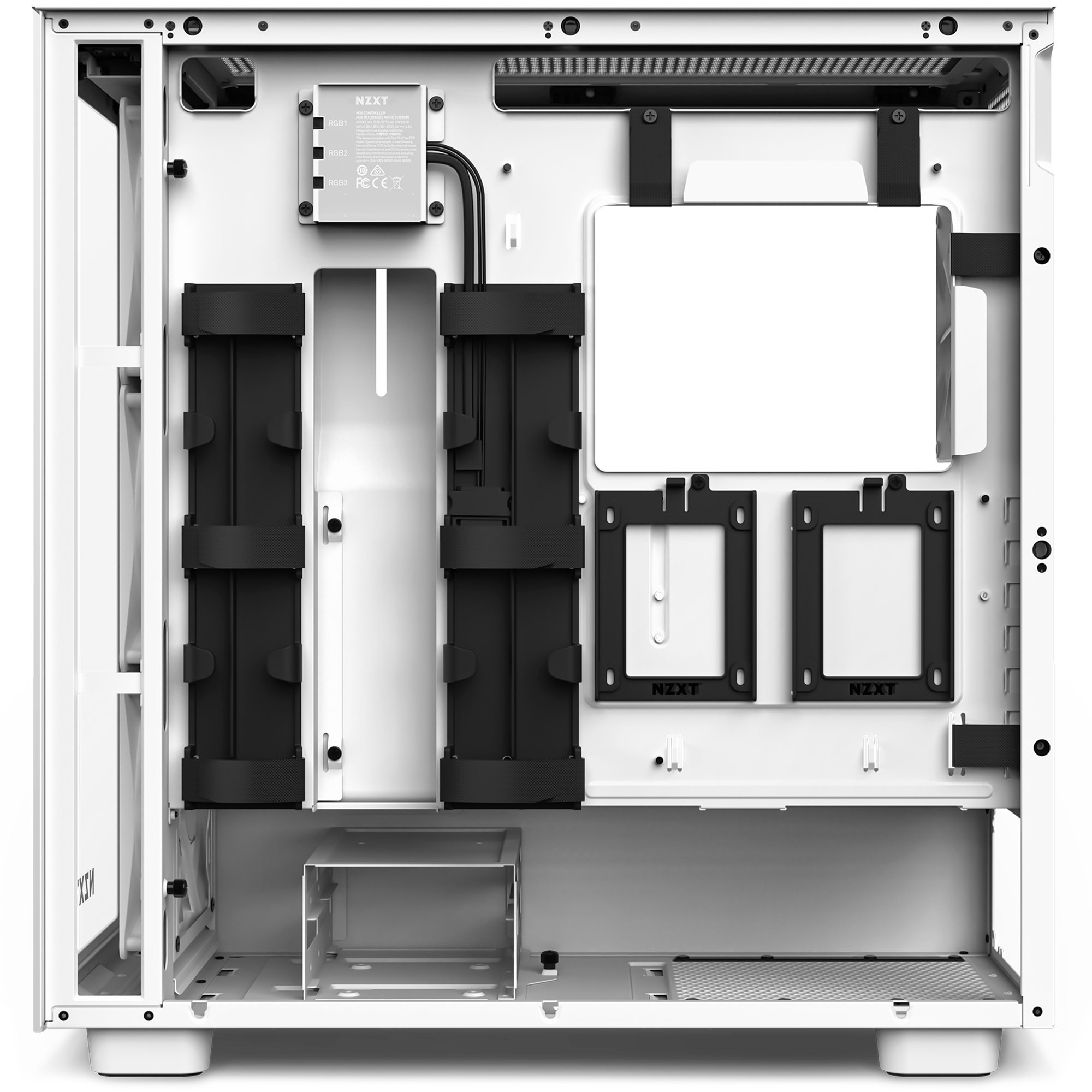

Easily Route Cables
Component Compatibility
Technische Daten
Key Specs
Motherboard Support
Mini-ITX, Micro-ATX, ATX
Enclosure Type
Mid-Tower
Case Material
SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)
Dimensions
Height
505mm (With Feet)
Width
230mm
Depth
480mm
Weight
11.36 kg
Compatibility & Clearance
Max CPU Cooler Clearance
Up to 185mm
Max GPU Clearance
Up to 400mm
Front Radiator Clearance
60mm
Top Radiator Clearance
30mm
Cable Management
18-22mm
Front I/O Ports
USB 3.2 Gen 1 Type-A
2
USB 3.2 Gen 2x2 Type-C (20 Gbps)
1
Headset Audio Jack
1
RGB Controller
NZXT RGB Connector
3 (Support up to 120 LEDs)
Expansion Slots
Standard
7
Vertical
0
Drive Bays
2.5"
4+2
3.5"
2
Fan Support
Front
3 x 120mm / 3 x 140mm
Top
3 x 120mm / 2 x 140mm
Rear
1 x 120mm / 1 x 140mm
Filters
All Air Intakes
Radiator Support
Front
Up to 360mm with Push/Pull
Top
Up to 360mm
Rear
Up to 140mm
Fan Specs - F140Q (Case Version)
Model
F140Q (Case Version)
Speed
1200 ± 240RPM
Airflow
99.56 CFM
Static Pressure
1.14 mm-H2O
Noise
24.18 dBA
Fan Connector
3-pin DC
Fan Specs - F140 RGB Core Fan
Model
F140 RGB Core Fan
Speed
500-1,500 ± 150 RPM
Airflow
90.79 CFM
Static Pressure
3.22 mm H2O
Noise
34.48 dBA
Fan Connector
4-pin PWM
General
Warranty
2 Years
White Variant
Model Number
CM-H71EW-02
UPC
810074843607
EAN
5056547203522
Black Variant
Model Number
CM-H71EB-02
UPC
810074843591
EAN
5056547203515
