F240 RGB Core

Name: F240 RGB Core
Brand: NZXT
Price: 44.99 USD
Availability: OutOfStock
Rating: 4.0 (22 reviews)

4.0

Rated 4.0 out of 5 stars

4.0 Stars (22 Reviews)

240mm Single-Frame RGB Fan Unit

Series: Fans

Color:White

Variante

Inside the Box

RGB Core Fan
Mounting Screws x4
Splitter Cable

Resources

Manuals & Documentation

Overview

NZXT F Series RGB Core single-frame fans seamlessly integrate multiple fans for effortless installation while offering superior cooling, whisper-quiet performance, and striking RGB visuals.

Single-frame unit with integrated fans streamlines installation, setup, and lighting control—no need to connect individual fans.
Simply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard's 5V ARGB header using the included splitter cable.
Fan blade design boosts static pressure to push air through tight spaces while ensuring optimal airflow. Suitable for both intake and exhaust.
Fluid dynamic bearings ensure quiet, stable operation across an exceptional 60,000 hour lifespan.
Eight individually-addressable RGB LEDs per fan hub are diffused through semi-translucent blades for brilliantly colorful visuals.
PWM-controlled fans dynamically adjust spinning speeds based on PC temperatures for optimal efficiency and reduced noise.
Anti-vibration rubber corners effectively eliminate noise caused by vibrations for hushed performance at any speed.
Control lighting and fan speeds via CAM software when connected to an NZXT controller (sold separately).

Two white, rectangular PC cooling fans with vibrant RGB lighting are shown. The fans have a colorful gradient glow in shades of blue, pink, purple, and yellow, and are positioned upright, one facing front and one facing side.

All-in-one Design

Single-frame unit with integrated fans streamlines installation, setup, and lighting control.

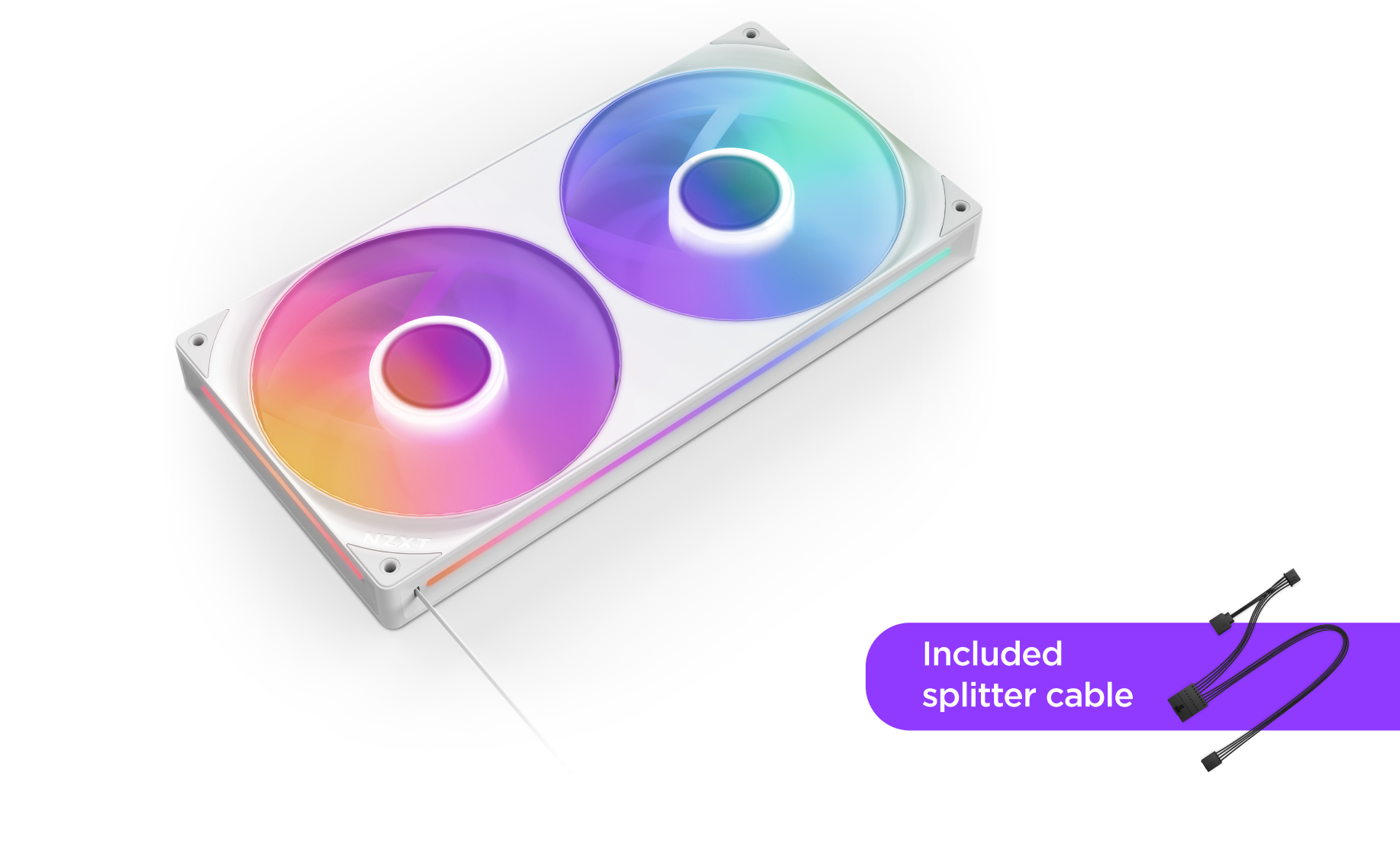

A white dual-fan RGB case fan with colorful lighting, shown from an angle. In the corner, a purple label reads Included splitter cable with an image of the splitter cable beside it.

Versatile Connectivity

Simply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard's 5V ARGB header using the included splitter cable.

A white PC fan with RGB lighting is shown in front of blue, wavy lines. Text on the right highlights specs: max static pressure 3.3 mm H₂O and max airflow 75.12 CFM per fan.

Optimal Performance

Blade design boosts static pressure to push air through tight spaces with superior airflow.

Exploded view of a white computer fan showing its components. A purple icon with a fan and circular arrow reads LIFE 60,000 Hours below the image.

Fluid Dynamic Bearings

Ensures low noise, high rotational stability, and a 60,000-hour fan lifespan.

A white dual-fan computer cooling unit emits colorful RGB lights, with the text 8 LEDs per fan in bold purple above it.

Radiant RGB Lighting

8 aRGB LEDs per fan hub shine through semi-translucent blades and frame side windows.

A white cooling fan is shown with blue airflow graphics. Text above indicates the fan speed: SPEED 500–2,000 ± 200 RPM Per Fan. A speedometer icon is also present.

PWM Control

Dynamically adjusts fan speeds based on PC temperatures for optimal efficiency*.

*Requires PWM connection to motherboard or controller (sold separately)

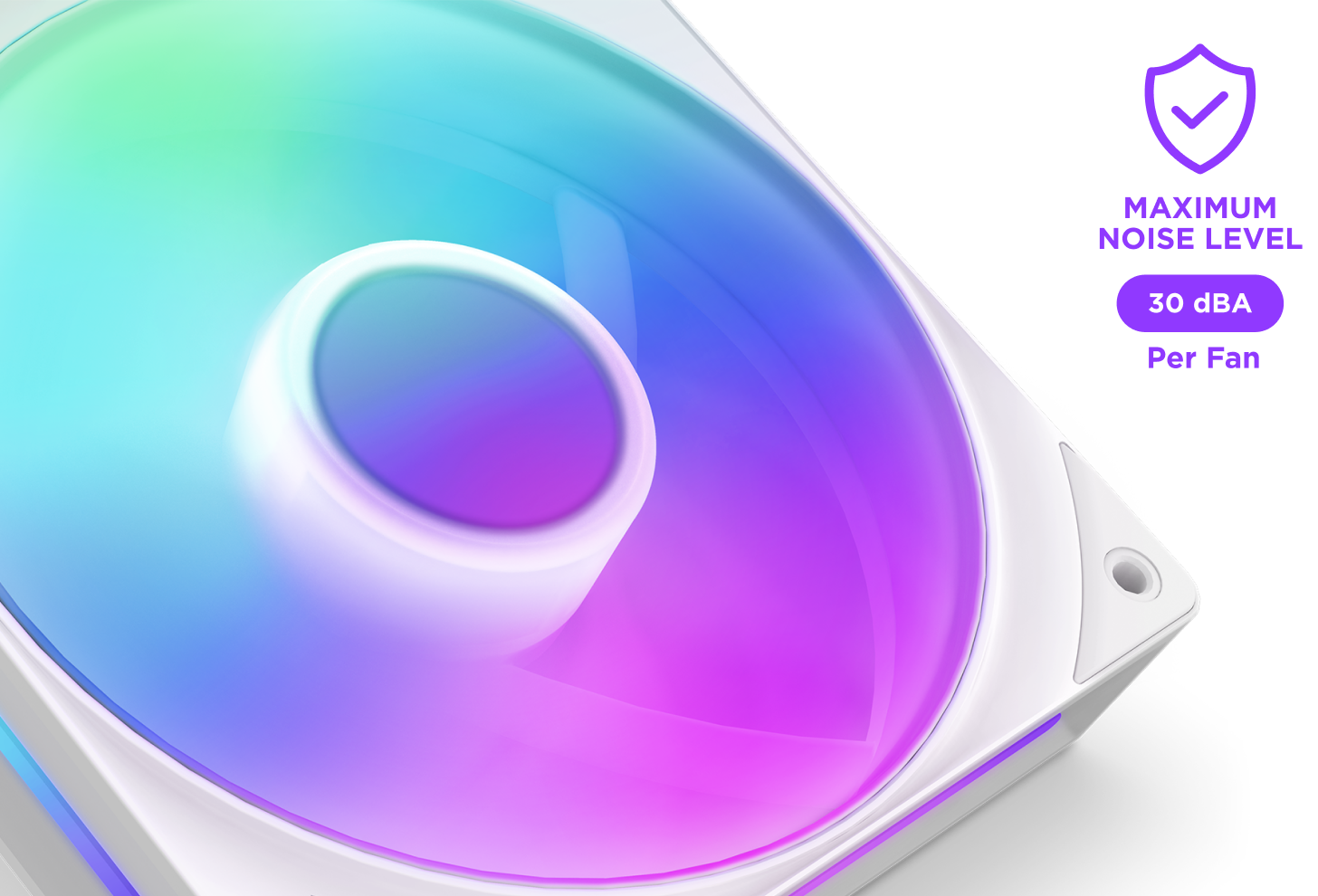

Close-up of a computer fan with vibrant RGB lighting in blue, purple, and green hues. Text indicates Maximum Noise Level: 30 dBA Per Fan next to a shield icon with a check mark.

Silent Operation

Anti-vibration rubber corners dampen noise and Zero RPM Mode* shuts fans off during light loads.

*Requires an NZXT controller or NZXT motherboard, each sold separately.

A white RGB-lit gaming PC case is shown next to a computer screen displaying the NZXT CAM software, with text describing CAM features like fan speed control and lighting customization on a purple gradient background.

Tech Specs

Height

240 mm

Width

120 mm

Depth

26 mm

Speed

500 - 2,400 ± 250 RPM per fan

Airflow

75.12 CFM per fan

Static Pressure

3.3 mm H₂O per fan

Noise

30.00 dBA per fan

Power Consumption

12V DC, 0.56A, 6.72W / 5V DC, 0.45A, 2.25W

Bearing

Fluid Dynamic Bearing

Output LED

8 LEDs per Fan

Connector

8-pin for PWM & RGB

Cable Length

1 x 600 mm

Material

Plastic, Rubber, PCB

Life

60,000 Hours

Splitter Cable Connections & Cable Length

4-pin PWM Fan Cable (1 x 300 mm) / 5V RGB & 4-pin NZXT RGB Cable (1 x 100 mm)

Warranty

5 years

Model Number

RF-U24HF-B1

UPC

810074844482

EAN

5056547204390

Model Number

RF-U24HF-W1

UPC

810074844499

EAN

5056547204406
