N9 X870E

3.8
Rated 3.8 out of 5 stars
3.8 Stars (4 Reviews)

AMD® X870E ATXゲーミングWi-Fi 7マザーボード フルカバー&RGB

Color:White

Overview

N9 X870Eは、洗練されたデザインで最先端のパフォーマンスを提供し、最新のAMD®ゲーミングPCの理想的な基盤となります。最新のAMD® Ryzen™プロセッサー向けに構築されており、オーバークロック対応の電力、最適化された熱管理、PCIe 5.0サポートに加え、高速Wi-Fi 7、5GbE、USB 4接続を備えています。フルメタルカバーに控えめなRGBライティングが施され、どんなビルドにも洗練された雰囲気を加えます。

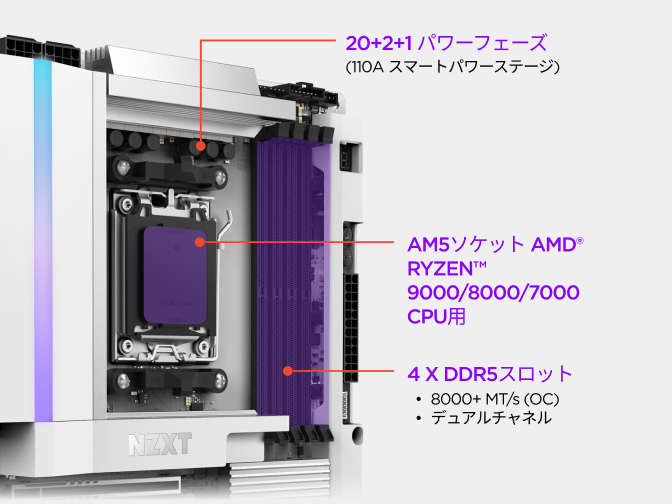

  • AMD® AM5ソケット: AMD® Ryzen™ 9000、8000、および7000シリーズデスクトッププロセッサーに対応。
  • 優れた電力: 110A SPSを備えた堅牢な20+2+1電源フェーズ設計と8層の低損失2オンス銅PCBにより、優れた安定性とオーバークロックの可能性を確保。

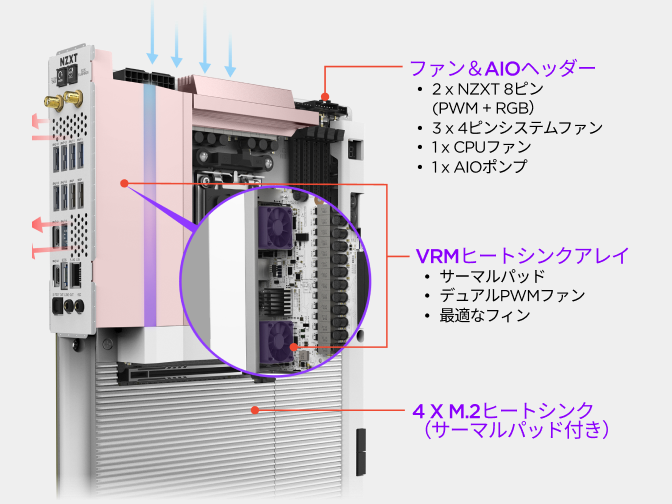

  • 高度な冷却: VRMヒートシンクアレイとサーマルパッド、デュアルPWMファンとフィン、さらにすべてのM.2スロット用の専用ヒートシンクとサーマルパッドで圧力下でも冷却を維持。
  • PCIe® 5.0拡張: 次世代GPU用の1つのPCIe® 5.0 x16スロットと追加の高速拡張カード用の1つのPCIe® 3.0 x16スロット。
  • DDR5メモリ: 4つのデュアルチャネルDIMMスロットがDDR5 RAM速度8000+ MT/sをサポートし、より高速なマルチタスクとシステム応答性を向上。

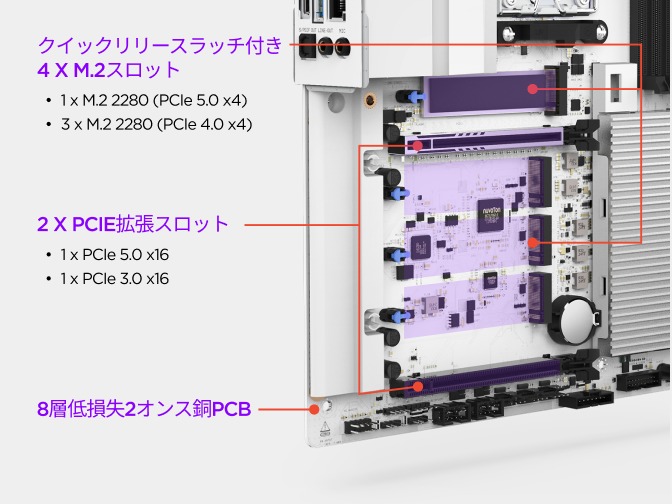

  • 高速ストレージ: 1つのPCIe® 5.0と3つのPCIe® 4.0を含む4つのM.2スロットが超高速ストレージ速度とロード時間を提供し、すべてクイックリリースラッチ付き。
  • 次世代接続: USB 4 (40 Gbps)、Wi-Fi 7、および5GbEが超高速データ転送と超低遅延ネットワークを提供。

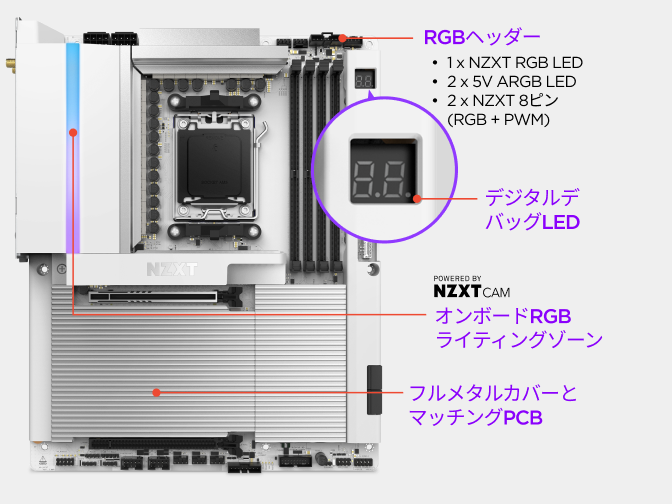

  • スリーク&スタイリッシュ: プレミアムなフルメタルカバーがPCBを隠し、クリーンでモダンな美観を提供し、オンボードのカスタマイズ可能なRGBライティングで強化。

重要: BIOS & ドライバの更新が必要

互換性、安定性、最高のパフォーマンスのためにBIOSとドライバを更新してください。

  • BIOS: AMD® Ryzen™ 7 9800X3Dにはバージョン3.20以降が必要です。システムは起動しますが、メモリ関連の問題を防ぐためにすぐに更新してください。NZXT CAMでBIOSバージョンを確認できます。
  • ドライバー: 最適なパフォーマンスと安定性のために、チップセットとシステムドライバーを最新の状態に保ってください。

最新のBIOSとドライバーは、このページの一番下、FAQの下にあります。お困りですか?NZXTサポートがサポートします!"

技術仕様
CPU
CPU
AMD Socket AM5(AMD® Ryzen™ 9000/8000/7000 シリーズ対応)
チップセット
チップセット
AMD® X870E
メモリ
DIMMスロット
4 × DDR5 のみ
メモリ構成
デュアルチャネル
XMP
対応
EXPO
対応
OC周波数
NZXTサイトのメモリQVL参照
拡張スロット
PCIe 5.0 ×16 (PCIEX16_1)
1
PCIe 3.0 ×16 (PCIEX16_2)
1 (×2モード)
M.2ソケット (Key E)
1 (Type 2230 Wi-Fi/BT モジュール)
ストレージ
M.2_1
2280 (PCIe 5.0 ×4)
M.2_2
2280 (PCIe 4.0 ×4)
M.2_3
2280 (PCIe 4.0 ×4)
M.2_4
2280 (PCIe 4.0 ×4)
SATA 6Gb/s ポート
4
LAN
LAN
Realtek® 5.0G LAN
ワイヤレス
Tri-Band Wi-Fi 7
対応
Bluetooth
v5.4
オーディオ
オーディオ
Realtek® ALC4082 コーデック

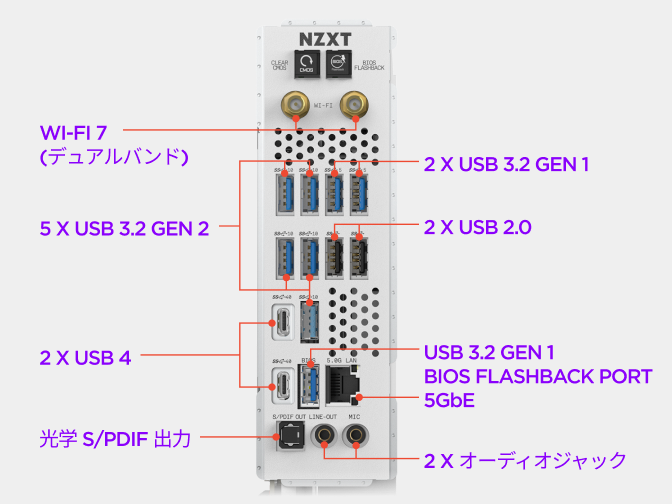

リア I/O
アンテナ SMA
2
USB 4 ポート
2
USB 3.2 Gen 2 ポート
5
USB 3.2 Gen 1 Type-A ポート
3
USB 2.0 ポート
2
Clear CMOS ボタン
1
LAN (RJ45) ポート
1
オーディオジャック
2
光デジタル出力
1
内部 I/O
24 ピン ATX
1
8 ピン ATX 12V
2
CPU_FAN 4 ピン
1
AIO_PUMP 4 ピン
1
SYS_FAN 4 ピン
3
NZXT RGB LED
1
5V ARGB LED
2
NZXT 8 ピン PWM
2
USB 2.0 ヘッダー
2 (最大4ポート)
USB 3.2 Gen 1 ヘッダー
2 (最大4ポート)
USB 3.2 Gen 2×2 フロントヘッダー
1
フロントオーディオ
1
電源ボタン
1
リセットボタン
1
Post LED
1
Digital Debug LED
1
一般
OS
Windows® 11/10 64ビット
フォームファクタ
ATX
保証
3年
型番
N9-X87XT-W1 (ホワイト) / N9-X87XT-B1 (ブラック)
UPC
810074847292 (ホワイト) / 810074847308 (ブラック)
EAN
5056547207254 (ホワイト) / 5056547207261 (ブラック)
3.8
Rated 3.8 out of 5 stars
Based on 4 reviews
75%would recommend this product
Total 5 star reviews: 1 Total 4 star reviews: 2 Total 3 star reviews: 0 Total 2 star reviews: 1 Total 1 star reviews: 0
4 reviews
  • P
    Papasmurf
    Verified Reviewer
    I recommend this product
    Rated 5 out of 5 stars
    Aug 8, 2025
    Nice functional board

    The perfect white board with a few black accents for my new CWL system. Installation and commissioning went smoothly, and updating the BIOS was no problem either. This is my first NZXT board, and I'll definitely be back for more next time.

  • R Profile picture for Ric
    Ric
    Verified Reviewer
    I recommend this product
    Rated 4 out of 5 stars
    Jul 11, 2025
    White Candy

    The board is beautiful. It fits the NZXT motif perfectly and adds a premium touch to other cases. It's pricey and misses on some niche features. For a consumer level board it does everything you would want on a everyday basis while looking good at it. The quality is top notch. The LED strip is cool and not over the top. This is an enthusiasts level item and you pay for that. If it fits your budget it's worth it. Just update the BIOS to the latest which is 3.30 at the time of this review. There are some issues with ASRock boards so update before installing CPU.

  • MS Profile picture for M S.google logo
    M S.
    Verified Reviewer
    I recommend this product
    Rated 4 out of 5 stars
    Jul 10, 2025
    Good but

    Great look, familiar NZXT BIOS UI. But everything works... no matter which RAM combined with a Ryzen 7 9800X3D Docp or XMP always results in a freeze. Only in standard time. Furthermore, Cam always says that an update is available but according to the website, 3.30 is currently up to date. Otherwise fans, RGB runs great when you also have everything else from NZXT. It is already my 3rd board from NZXT but the first with aMD. I'm not completely satisfied, I think I would have done better with Intel and NZXT. Hope that the BIOS is a bit clearer here, as many are very hidden. But otherwise everything runs smoothly. Yes, the price is not fair, 200 euros less would have done.

    Translated from German
  • F
    Florian
    Verified Reviewer
    I do not recommend this product
    Rated 2 out of 5 stars
    Jun 18, 2025
    Beautiful but bad...

    At €499, the NZXT N9 X870E is a huge bummer. The absence of Thunderbolt, HDMI and DisplayPort ports is simply deplorable for a motherboard at this price, especially when compared to market standards. The BIOS is a disaster: slow startup, impossible updates, and general instability. The CAM software doesn't help, detecting the card one time out of five, making it nearly impossible to adjust the fans. The differences between the Intel and AMD versions are also frustrating and poorly justified. The only positive point: an elegant design, but that's not enough to save the day. I do not recommend, very disappointed with this purchase.

    At €499, the NZXT N9 X870E is a huge disappointment. The lack of Thunderbolt, HDMI, and DisplayPort is simply inferior for a motherboard at this price, especially when compared to market standards. The BIOS is abysmal: slow boot times, impossible to update, and generally unstable. The CAM software is equally problematic, detecting the board only one out of five times, making fan control nearly impossible. The differences between the Intel and AMD versions are also frustrating and poorly justified. The only positive point is its sleek design, but that's nowhere near enough to redeem it. I don't recommend this product—very disappointed with this purchase.

    Translated from French
