H9 Flow

New

Large Dual-Chamber Mid-Tower ATX Airflow Case

Sale price$169.99
or
Color:White

The NZXT H9 Flow is a white ATX case with a transparent side panel, visible front and rear cooling fans for airflow, and multiple USB ports on the bottom front edge.
H9 Flow Sale price$169.99

Overview

The H9 Flow is a spacious mid-tower ATX case built for high-performance builds, balancing airflow and aesthetics. Its dual-chamber design improves cooling and cable management, while perforated panels, angled fans, and ample fan and radiator support deliver optimal thermal performance.

  • Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management.
  • Optimized Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.
  • Pre-Installed Fans: Includes three F140Q (CV) fans in the front-right and one F120Q (CV) fan in the rear. CV = Case Version (3-pin DC)
  • Ten-Fan Capacity: Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.
  • Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass paneling.
  • Large Radiators & GPUs: Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.
  • Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless.
  • Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.

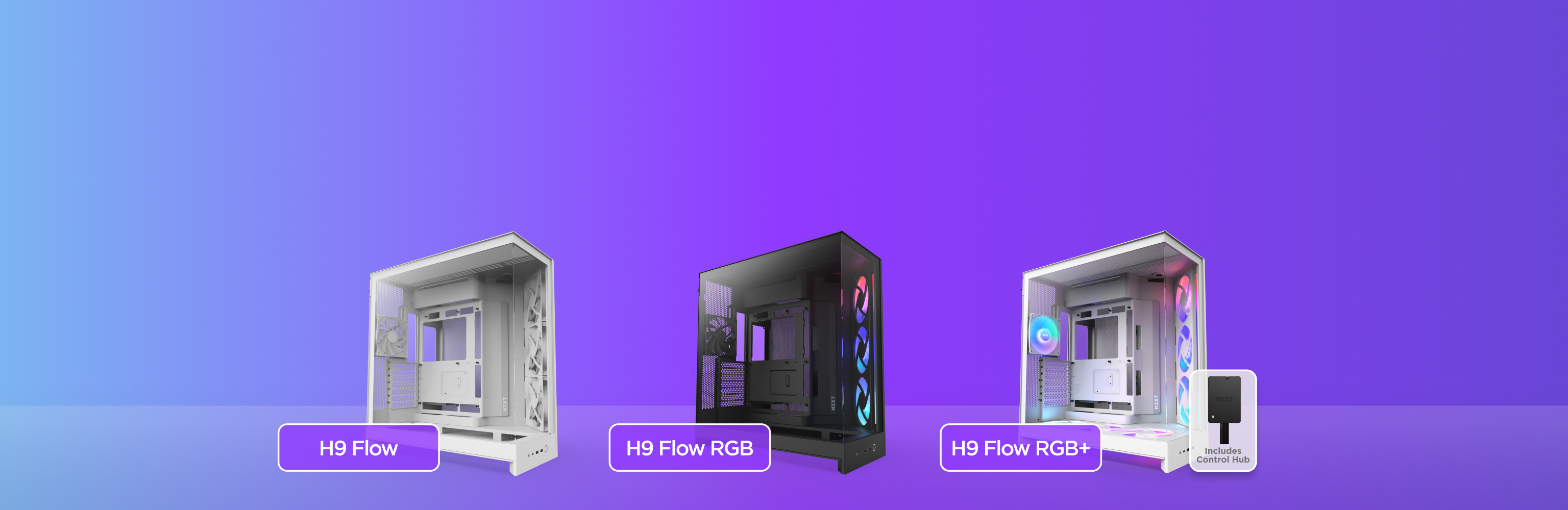

H9 Line up - Built to Flow. Made to Show.

Built to Flow. Made to Show.

The H9 Flow is a spacious, dual-chamber case built for high-performance builds, featuring extensive cooling support and wraparound glass panels for an uninterrupted view of your build.

A PC case with RGB lighting, illustrating airflow: blue arrows show cool air entering from the bottom and right, while purple arrows show warm air exiting from the top and left. Temperature display on the CPU cooler reads 32°C.

Optimized Airflow

Angled front-right fans and an airflow-optimized layout keep temps low and performance steady.

Close-up view of a black computer case with a mesh front panel showing two cooling fans inside. The case has a sleek, modern design with sharp edges and a partially visible glass side panel.

Mesh Panels

Ultra-fine, high-airflow mesh panels maximize airflow while filtering dust.

Two computer towers: one black with a transparent side panel showing fans, and one white with a clear panel revealing RGB-lit components, liquid cooling, and a digital display inside.

Spacious Dual-Chamber

Separates heat-generating components for improved airflow and a cleaner build.

Side view of a PC case with labeled fan/radiator mounting locations: front (3x120mm/3x140mm), top (3x120mm/3x140mm), bottom (3x120mm/3x140mm), and rear (1x120mm/1x140mm).

10-Fan Cooling

Fits up to nine 140 mm fans and one 120 mm rear fan.

A white gaming PC case with RGB fans and a digital display, showing interior liquid cooling tubes. Purple labels indicate maximum radiator sizes: 420 mm top/right, 120 mm rear, and 360 mm bottom.

Large Radiator Support

Holds up to 420 mm radiators on the top and front-right panels for versatile cooling.

Close-up of a computers interior showing an NZXT-branded cooler with a digital display reading 32°C GPU. Purple overlay text reads Up to 435mm. Bottom right has a green label: 50 Series Ready.

Maximum Graphics

Handles GPUs up to 435 mm, giving plenty of space for top-tier graphics cards.

Open white computer case showing interior with highlighted motherboard tray and cable management sections in purple gradient. Multiple cable routing channels and mounting points are visible.

Back-Connect Ready

Compatible with ASUS BTF and MSI Project Zero motherboards for a cable-free look.

A black NZXT computer case with its side panel open, revealing an empty interior and highlighted mounting areas. A circular inset zooms in on an internal NZXT-branded strap.

Easy Cable Management

Extra-wide channels, Velcro straps, and tie-down points make cable routing simple.

Tech Specs
Dimensions
Height
506 mm (19.9 in)
Width
315 mm (12.4 in)
Depth
481 mm (18.9 in)
Volume
76.7 L
Weight
12.46 kg (27.47 lb)
General
Enclosure Type
Mid-tower
Motherboard Compatibility
E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX
Rear-Connecting Motherboard Support (BTF, Project Zero)
Yes (ATX, Micro-ATX)
Materials
SGCC steel, clear tempered glass (white), tinted tempered glass (black)
Clearance
CPU Cooler Height
165 mm
GPU Length
Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)
PSU Length
200 mm
Top Radiator & Fan Thickness
Up to 80 mm (360 mm) Up to 62 mm (420 mm)
Front I/O Ports
USB 3.2 Type-A
2
USB 3.2 Gen2x2 Type-C
1
Headset Jack
1
Expansion Slots
Standard
7
Vertical
0
Drive Bays
2.5"
4+2
3.5"
2
Fan Support
Front-Right
3 x 120 mm / 3 x 140 mm (3 x F140Q (CV) included)
Top
3 x 120 mm / 3 x 140 mm
Bottom
3 x 120 mm / 3 x 140 mm
Rear
1 x 120 mm (1 x F120Q (CV) included)
Radiator Support
Front-Right
Up to 420 mm
Top
Up to 420 mm
Bottom
Up to 360 mm
Rear
Up to 120 mm
Fan Specs - F140Q (CV)
Model
F140Q (CV)
Speed
1,350 ± 150 RPM
Airflow
100.25 CFM
Static Pressure
1.4 mmH2O
Noise
22.9 dBA
Fan Connector
3-pin
Fan Specs - F120Q (CV)
Model
F120Q (CV)
Speed
1,350 ± 150 RPM
Airflow
60.2 CFM
Static Pressure
1.05 mmH2O
Noise
24.1 dBA
Fan Connector
3-pin
Warranty
Warranty
2 years
Product Info
Model Number
CM-H92FW-01 CM-H92FB-01 CM-H92FW-02 CM-H92FB-02
UPC
810074847841 810074847858 815671019493 815671019509
EAN
5056547207636 5056547207643 5056547208848 5056547208855
